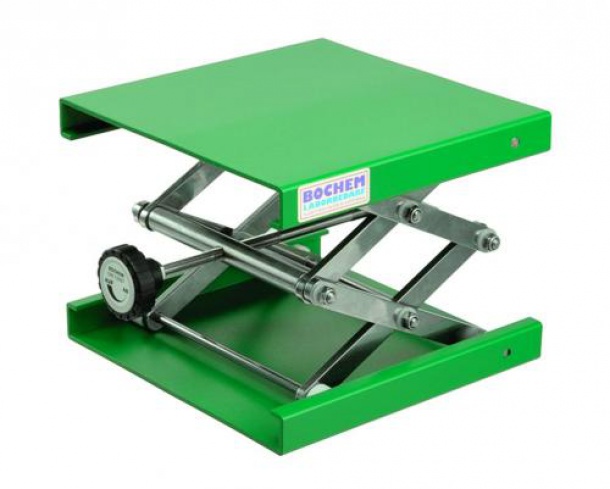

laboratorní zvedáček, hliníkový
Laboratory jacks, aluminium, Type A , Width 100 mm, Depth 100 mm, Min. height 55 mm, Max. height 120 mm, Max. stat. 10 kg, Max. dyn. 5 kg
Výrobce
Zařazeno v kategoriích
Laboratorní zvedáčky
Popis
Laboratory jacks, aluminium
For those who wish to reach the top
New design and improved construction:
-Improved scissor technology with reduced tolerances
-Ergonomic knob, rounded and user friendly
-Scissor-construction made of 18/10-stainless steel
Properties:
-All models are manufactured according to DIN 12897.
-With the operating load we differ between the maximal dynamic operating load (Kg max. dyn.) and the maximal static operating load (Kg max. stat.) of the lab jack. These norms are also according to DIN 12897.
-Smaller models up to 240mm x 240mm (Type A) have a simple adjusting wheel, which can be operated by hand.
-Bigger models from 300mm x 300mm on (Type B) have a special adjusting wheel, which is used with the included ratchet.
Type A
Width 100 mm
Depth 100 mm
Min. height 55 mm
Max. height 120 mm
Max. stat. 10 kg
Max. dyn. 5 kg
For those who wish to reach the top
New design and improved construction:
-Improved scissor technology with reduced tolerances
-Ergonomic knob, rounded and user friendly
-Scissor-construction made of 18/10-stainless steel
Properties:
-All models are manufactured according to DIN 12897.
-With the operating load we differ between the maximal dynamic operating load (Kg max. dyn.) and the maximal static operating load (Kg max. stat.) of the lab jack. These norms are also according to DIN 12897.
-Smaller models up to 240mm x 240mm (Type A) have a simple adjusting wheel, which can be operated by hand.
-Bigger models from 300mm x 300mm on (Type B) have a special adjusting wheel, which is used with the included ratchet.
Type A
Width 100 mm
Depth 100 mm
Min. height 55 mm
Max. height 120 mm
Max. stat. 10 kg
Max. dyn. 5 kg
Varianty produktu
Pro zobrazení cen na míru se přihlašte do klientské sekce.
Kód produktu
Kód produktu
Kód BDL 9118965 Kód výrobce 11090
Kód BDL 9118962 Kód výrobce
11030
Type A , Width 200 mm, Depth 200 mm, Min. height 60 mm, Max. height 275 mm, Max. stat. 30 kg, Max. dyn. 7 kg
11030
Kód BDL 9118921.001
Ratschet 190 mm for 9.118 928 + 9.118 929
Kód BDL 9118964 Kód výrobce
11080
Type B , Width 300 mm, Depth 300 mm, Min. height 130 mm, Max. height 470 mm, Max. stat. 60 kg, Max. dyn. 12 kg
11080
Kód BDL 9118961 Kód výrobce
11020
Type A , Width 160 mm, Depth 130 mm, Min. height 60 mm, Max. height 275 mm, Max. stat. 30 kg, Max. dyn. 7 kg
11020
Kód BDL 9118963 Kód výrobce
11040
Type A , Width 240 mm, Depth 240 mm, Min. height 60 mm, Max. height 275 mm, Max. stat. 30 kg, Max. dyn. 7 kg
11040
Kód BDL 9118960 Kód výrobce
11015
Type A , Width 100 mm, Depth 100 mm, Min. height 55 mm, Max. height 120 mm, Max. stat. 10 kg, Max. dyn. 5 kg
11015
