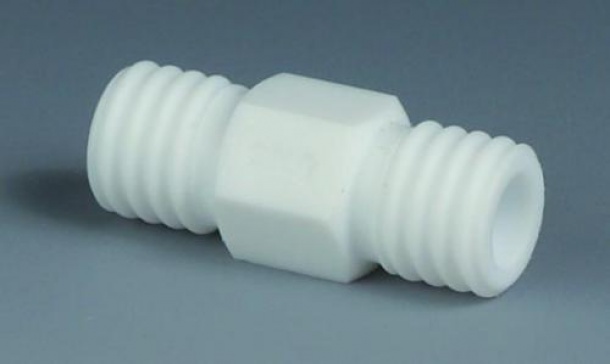

GL spojka, PTFE
GL fittings, PTFE, Bore 6.50 mm, Neck thread 14 GL, Description straight
Výrobce
Zařazeno v kategoriích
Hadicové spojky
Popis
GL fittings, PTFE
Couplings with GL connector screwthread. Connect PTFE, PFA, FEP, glass and metal tubing. Fittings are chemical and temperature resistant to approx. 250°C. Can be used at working pressures of up to 10 bar when used in combination with Bola laboratory screwthread connections (at room temperature). A further advantage is that they can be used as expansion/reduction adapters to connect tubing of different diameters. For easy tubing connection we recommend accessory Bola Laboratory screwthread connectors which can be ordered separately.
Bore 6.50 mm
Neck thread 14 GL
Description straight
Couplings with GL connector screwthread. Connect PTFE, PFA, FEP, glass and metal tubing. Fittings are chemical and temperature resistant to approx. 250°C. Can be used at working pressures of up to 10 bar when used in combination with Bola laboratory screwthread connections (at room temperature). A further advantage is that they can be used as expansion/reduction adapters to connect tubing of different diameters. For easy tubing connection we recommend accessory Bola Laboratory screwthread connectors which can be ordered separately.
Bore 6.50 mm
Neck thread 14 GL
Description straight
Varianty produktu
Pro zobrazení cen na míru se přihlašte do klientské sekce.
Kód produktu
Kód produktu
Kód BDL 9207114 Kód výrobce D 538-18
Kód BDL 9207135 Kód výrobce
D 540-25
Bore 14.50 mm, Neck thread 25 GL, Description T-shape
D 540-25
Kód BDL 9207122 Kód výrobce
D 539-45
Bore 32.50 mm, Neck thread 45 GL, Description angled
D 539-45
Kód BDL 9207119 Kód výrobce
D 539-18
Bore 10.50 mm, Neck thread 18 GL, Description angled
D 539-18
Kód BDL 9207116 Kód výrobce
D 538-32
Bore 21 mm, Neck thread 32 GL, Description straight
D 538-32
Kód BDL 9207113 Kód výrobce
D 538-14
Bore 6.50 mm, Neck thread 14 GL, Description straight
D 538-14
Kód BDL 9207137 Kód výrobce
D 540-45
Bore 32.50 mm, Neck thread 45 GL, Description T-shape
D 540-45
Kód BDL 9207134 Kód výrobce
D 540-18
Bore 10.50 mm, Neck thread 18 GL, Description T-shape
D 540-18
Kód BDL 9207121 Kód výrobce
D 539-32
Bore 21 mm, Neck thread 32 GL, Description angled
D 539-32
Kód BDL 9207118 Kód výrobce
D 539-14
Bore 6.50 mm, Neck thread 14 GL, Description angled
D 539-14
Kód BDL 9207115 Kód výrobce
D 538-25
Bore 14.50 mm, Neck thread 25 GL, Description straight
D 538-25
Kód BDL 9207136 Kód výrobce
D 540-32
Bore 21 mm, Neck thread 32 GL, Description T-shape
D 540-32
Kód BDL 9207133 Kód výrobce
D 540-14
Bore 6.50 mm, Neck thread 14 GL, Description T-shape
D 540-14
Kód BDL 9207120 Kód výrobce
D 539-25
Bore 14.50 mm, Neck thread 25 GL, Description angled
D 539-25
Kód BDL 9207117 Kód výrobce
D 538-45
Bore 32.50 mm, Neck thread 45 GL, Description straight
D 538-45
