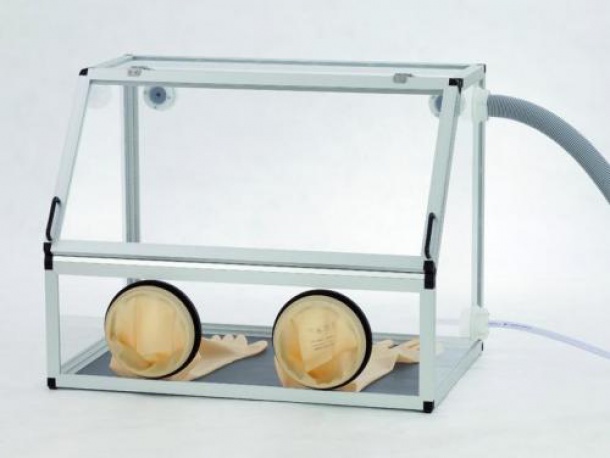

Glove boxes, PMMA/PE
Aluminium frame with panels made of acrylic glass (PMMA), base panel made of polyethylene. Front panel with two glove ports and one pair of natural rubber gloves size 9, two lead-ins for cables on the back side (upper left and upper right). Work space including two hose connectors for gas-filling and aeration and approprate tubing. Glove box without transfer chamber with 1 x 5m PVC tubing for gas-filling and 1 x 5m PE aeration tubing. Glove box with transfer chamber with 2 x 5m PVC tubing for gas-filling and 2 x 5m PE aeration tubing.

Glove box with Transfer chamber
Transfer chamber with two doors, external door with latch to prevent accidental opening, the tray extends into the workspace with opening of the internal door for easy removal of inserted products.
Specifications
Glove boxes with and without Transfer chamber
Capacity Box: 290 l
Internal Dimensions Box (W x D x H): 850 x 540 x 650 mm
Max. Load Box: 40 kg
Inlet opening: diam. 190 mm
Hinged lid opening (W x H): 850 x 425 mm
Working Temperature range: -20 ... 70 °C
Glove boxes with Transfer chamber
Capacity Transfer chamber: 24 l
Internal Dimensions Transfer chamber (W x D x H): 220 x 320 x 275 mm
Max. Load Transfer chamber: 3 kg

Type Glove box with Transfer chamber
External dimensions (W x D x H) 1210 x 600 x 700 mm
Weight 20 kg
