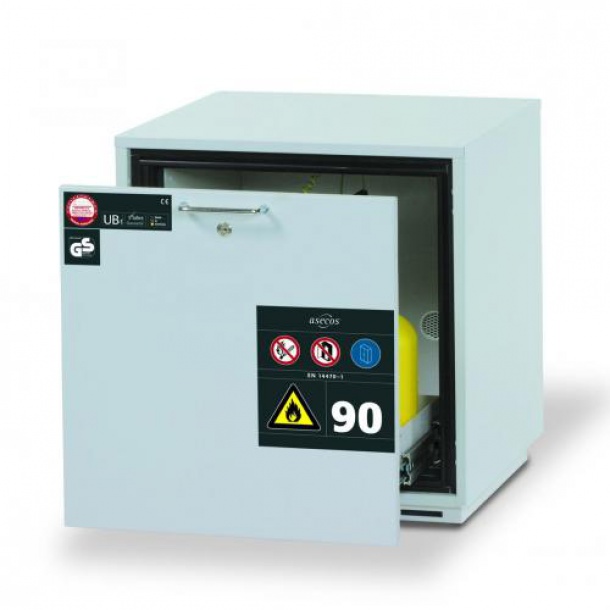

Underbench Cabinets

-Safe and approved storage of hazardous materials in workrooms
-Type proofed according to DIN EN 14470-1, fire resistance 90 minutes, GS approved, CE conformal
-Mobile: integrated castors with plinth, easy moving of the cabinet
-Quickly put into operation: integrated air ducts ready for connection (NW 50) to a technical exhaust system
-Safe access to all containers: interior of the drawer is completely visible, 135° opening of the wing doors
-Convenient: doors and drawer remain open in any position
-Safety: drawer standard fitted with earthing wire incl. clamp and with seal welded sump, doors and drawer are self-closing in the event of a fire
-No unauthorised use: doors and drawer are lockable with cylinder locking and locking state indicator (red/green)

Scope of delivery: Models UB90.060.059.S and UB90.060.110.S incl. drawer with sump and perforated insert, Models UB90.060.059.T and UB90.060.110.2T incl. bottom collecting sump and perforated insert as a storage level

Further cabinet versions available on request.
Specifications
Outer dimensions (W x D x H)
UB90.060.059.S/UB90.060.059.T:
UB90.060.110.S/UB90.060.110.2T:
593 x 574 x 600 mm
1102 x 574 x 600 mm
Inner dimensions (W x D x H)
UB90.060.059.S/UB90.060.059.T:
UB90.060.110.S/UB90.060.110.2T:
470 x 450 x 500 mm
980 x 450 x 500 mm
Sump (W x D x H)
UB90.060.059.S:
UB90.060.110.S:
422 x 441 x 80 mm
930 x 441 x 80 mm

Description Castors with plinth H=30 mm for cabinet width 1102 mm
