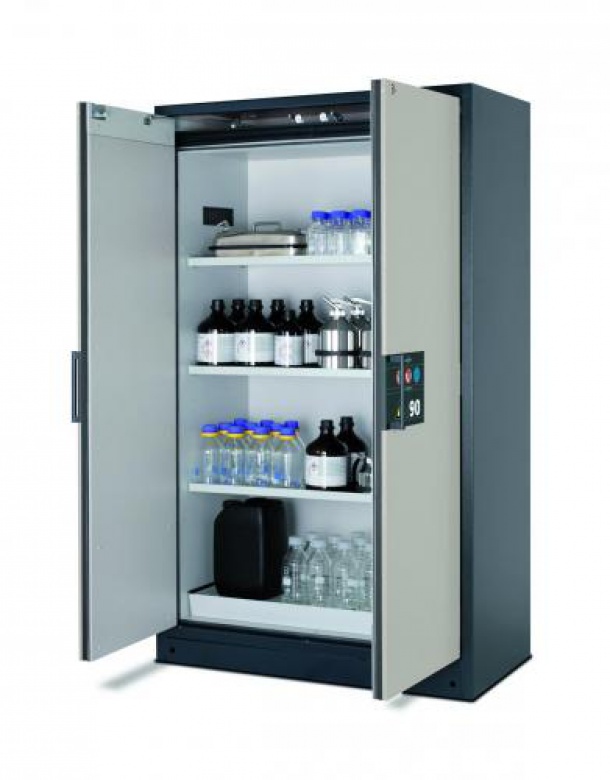

Safety storage cabinets Q-CLASSIC-90

-Safe and approved storage of hazardous materials in workrooms
-Type proofed according to DIN EN 14470-1, fire resistance 90 minutes
-GS approved
-Body made of sheet steel plastic laminated, structure finish
-Colour: Body anthracite grey (RAL 7016) doors light grey (RAL 7035), door colour pure white (RAL 9010) available on request
-Convenient handling with comfort, doors stop in any position, self-closing in the event of a fire
-Doors lockable with cylinder lock (suitable for master-key system) and locking state indicator (red/green)
-Integrated transport base, optional base cover
-Integrated adjusting aids to compensate for uneven floor
-Exhaust air connection (DN 75) on top of the cabinet

Height adjustable shelves (32 mm increments), load capacity 75 kg (evenly distributed load), bottom collecting sump with perforated insert as a first storage level. Capacity of the bottom collecting sump: 33 litre (cabinet width 1193 mm), 22 litre (cabinet width 599 mm)

Scope of delivery: Safety storage cabinet model Q90.195.120 or Q90.195.060 incl. interior equipment with 3 shelves, bottom collecting sump and perforated insert

Option:
-Recirculating air filter system with exhaust air monitoring (Cat. No. 9.840 650)
-Ventilation system with exhaust air monitoring (Cat. No. 6.238 986)
-Ventilation system without exhaust air monitoring (Cat. No. 9.840 616)

Many further cabinet versions available.
Specifications
Outer dimensions (W x D x H)
Q90.195.120:
Q90.195.060:
1193 x 615 x 1953mm
599 x 615 x 1953mm
Inner dimensions (W x D x H)
Q90.195.120:
Q90.195.060:
1050 x 522 x 1647mm
450 x 522 x 1647mm
Shelf dimensions (W x D x H)
Q90.195.120:
Q90.195.060:
1040 x 432 x 30mm
440 x 435 x 30mm
Weight
Q90.195.120:
Q90.195.060:
434kg
265kg

Description Safety storage cabinet Q90.195.120
