Concentrator Savant SPD131DDA SpeedVac Kits
Reliable and versatile Thermo Scientific Savant 131DDA SpeedVac Kits can be used with a wide variety of solvents. They offer resistance to TFA, DSMO and other aggressive solvents used in combinatorial chemistry applications.

-Deep aluminum PTFE coated chamber
-Safety cover lock
-Radiant glass safety cover improves drying time by applying radiant IRheat to samples
-PTFE plumbing and tubing
-Two valve manifold with built-in automatic bleeder valve
-Time/temperature display incorporating membrane touch pad switches
-Time/vacuum run
-Variable drying times from 35°C to 80°C in 5 degree increments
-Manual/auto timed run
-Endpoint mode terminates run when pre-set vacuum level is reached
-Built-in vacuum gauge and vacuum display
-Standard glass safety lids
-Radiant lamps within the chamber
-Heated lid for processing high boiling solvents (DMSO, DMF)
-Wider vapor port and tubing for enhanced vapor throughput - reducing drying times
-Adjustable vacuum level for preventing bumping of difficult solvent mixtures and optimising drying times
--5°C trap specifically designed for trapping high boiling point solvents
-Solvents and Solvent Combinations - SPD131DDA P1: Acetic acid, Ammonium hydroxide, Fromic acid, Hydrochloric acid, TFA, Methylene chloride and TFA, Acetone and HCL, Methylene chloride and MEOH, DMSO and methanol
-Solvents and Solvent Combinations - SPD131DDA P2: DMSO, DMF, Toluene

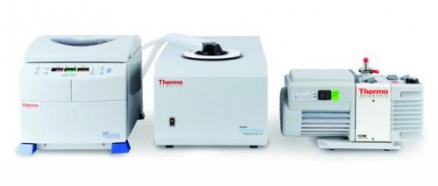

-SPD131DDA P1 Kit includes SpeedVac concentrator (acid resistant), -105°C, ultra-low temperature refrigerated vapor trap, OFP400 oil free, ETFE/PFA four-headed pump, Rotor for 40 -12 x 75mm glass tubes, Glass condensation flask, CryoCool heat transfer fluid (1L), Tubing and fitting kit
-SPD131DDA P2 Kit includes SpeedVac concentrator (acid resistant), -5°C refrigerated vapor trap, Vacuum pump, Rotor for 15 -15 x 45mm 1 dram vials, Chemical trap kit for use with disposable cartridge, Disposable cartridge with color indicator for trapping acids and water vapor, Tubing and fitting kit, Glass condensation flask, CryoCool heat transfer fluid (1L), Vacuum pump lubricating oil
-No. of Radiant lamps within the chamber: 2
-Vacuum Control Ramp Rate: 1 to 5
-Vacuum Level Control Setting: 20 to 0.1 Torr (26.6 to 0.1 mbar)

Type SPD131DDA P1
Description SpeedVac Kit
Dimensions (W x D x H) 813 x 2083 x 864 mm
Weight 161 kg
