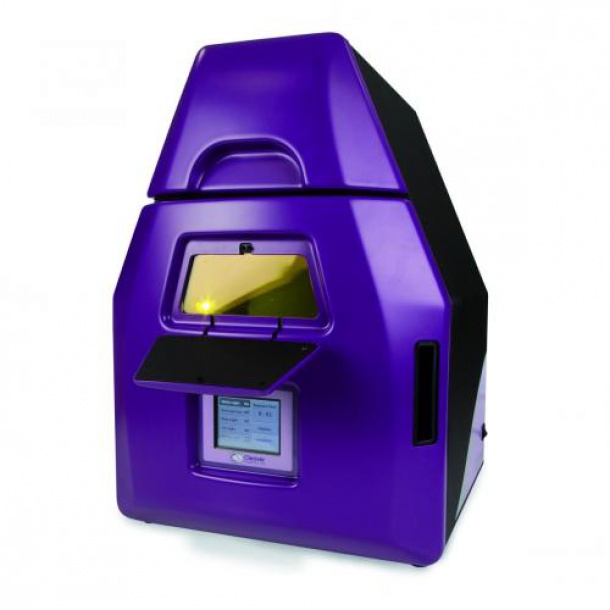

Gel Documentation System omniDOC/omniDOCi
The omniDOC offers high performance gel documentation and analysis at a relatively low cost. A high resolution 5 mega pixel camera with slide-out UV transilluminator, and optional blue epi-illumination module and white light table, makes the omniDOC suitable for imaging most fluorescent and colorimetric gels.

OMNIDOC features:
-Pre-focused 5 mega pixel camera with auto-exposure for almost instantaneous high resolution gel imaging; CMOS sensor for improved light sensitivity
-6mm lens, F1.2 aperture size, with manual adjustment
-Interchangeable 4 positions filter wheel with 620 nm ethidium bromide filter as standard; 520, 560, 580 nm and neutral density filter options available for runSAFE, SYBR stain and other fluorescence applications
-Viewing pane with universal amber filter for gel inspection, which may be covered by a spring-loaded panel during documentation
-Internal white LED - aids gel positioning and focusing
-Slide-out 312 nm transilluminator; uses optional plug-in white light table for coomassie, silver-stain and other colorimetric gels
-Large 210 x 260 m filter area
-Dark room assembly with corrosion resistant ABS construction
-Safety switch prevents accidental UV exposure when opening front door panel

omniDOCSAFE: omniDOC plus blue LED Epi-illumination and 520, 560, 580 nm and neutral density filters.
omniDOCPROSAFE: omniDOC plus blue LED Epi-illumination, 520, 560, 580 nm and neutral density filters and white light table.

Type OMNIDOC
Description with 620nm (EtBr) emission filter, 312nm UV transilluminator and USB cable
