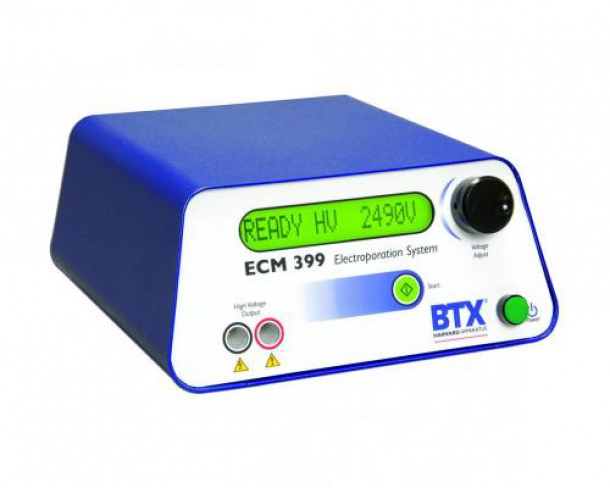

Electroporation System ECM® 399
The ECM® 399 is an electroporation system for the simple transformation of bacteria and yeast cells. It produces exponential decay waves and is designed to deliver the field strengths and pulse lengths required for transformations. The ECM® 399 is ideal for basic transformation in research and academic environments. It is easy to operate, cost effective, compact in size and portable.

Applications: Transformation of bacteria, yeast, fungus.

Scope of supply: Generator ECM® 399 , PEP cuvette holder, Cuvettes 1 mm, 2 mm, 4 mm (10 each) and Cuvette Rack
Specifications
Capacity/Resistance Range:
LV Mode:
HV Mode: 1050 µF / 150 Ohm, fixed
36 µF / 150 Ohm, fixed
Max. Voltage Output: 2500 V (Peak)
Pulse Interval:
Charge Time: 100 ms to 10 s
max. 5 s
Max. Pulse Length: 125 ms at 500 V (Peak)
or 5 ms at 2500 V (Peak)
Display: 16-character, liquid crystal, LCD backlit
Interface:
Relative Humidity: Digital User Interface
60 %
Power supply: 100 - 240 V, 50 / 60 Hz

Type BTX ECM 399
