BRANDplates® Single Insert System, 13mm, smooth walled or with Inlet Opening System
For manual and automated cell and tissue culture work.
Includes two different cell culture plates and two types of cell culture inserts, which can also be used in combination.

Quality features
General
-Sterile according to ISO 11 137 and AAMI-Guidlines, SAL 10-6
- Non cytotoxic according to ISO 10 993 5, endotoxin free (<0.01 EU/ml), free from DNA, DNase and RNase.
Plates
-Innovative, specially designed wells with side feeding ports,
-Manufactured according to the requirements in ANSI/SLAS Standards 1 and 4
-pureGradeä S (untreated) and cellGradeä plus (TC treated) surface
Inserts
-Track-etched PC- und PET membranes
-Hanging inserts
-Perfect positioning in the plates via guide ridges
-cellGradeä plus surface (TC treated)

BRANDplates® plates
Cell culture plates for insert strips

24-well Standard Plate
The plate includes 24 individually fillable wells that can be fitted with strips of 4 inserts and/or individual inserts.
6-well Special Plate
The 4 wells are all connected as one large, elongated well. This well can be fitted with a strip of 4 inserts so that all 4 of the inserts in the strip can be supplied with medium at the same time.

BRANDplates® Insert Strips and Insert System

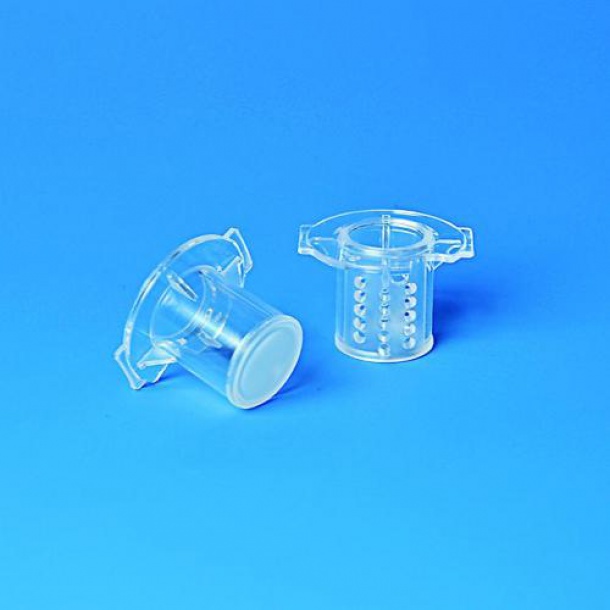

Cell culture inserts, smooth walled

Cell culture inserts with Inlet Opening System
With special inlet channels, for automated in vitro preparation of human tissues. The Inlet Opening System enables rapid, consistent changing of media, from submersion culture to air-lift culture. The special inlet channels enable adjustment of the medium level without damage to the skin mode
PS. cellGradeä plus surface, sterile. Single Inserts (single packed).

Description smooth-walled
Pore size 0.400000 µm
Membrane PC
Height Insert 13 mm
