chemický vakuový systém NT
Chemistry Pump Units and Vacuum Systems, Type PC 510 select , Dimensions (W x D x H) 243 x 418 x 457 mm, max. discharge flow 2.0 / 2.3 m³ / hr., Ultimate vacuum without / with gas ballast 7 / 12 mbar (abs.), Connector CEE
Výrobce
Zařazeno v kategoriích
Vývěvy s ovládáním průtoku
Popis

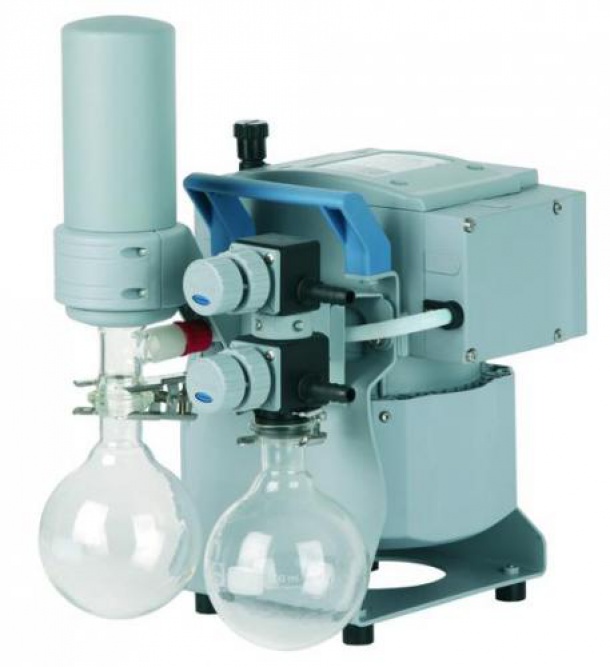

Chemistry Pump Units and Vacuum Systems
Compact design, ready to use, no set-up required. Constructed in highly chemical resistant materials. Quiet operation.
-100% oil-free pumping of gases
-gas ballast as standard for working with condensable vapours
-good ultimate vacuum even with gas ballast
-high vapour tolerance for water and solvents
-long service life, low maintenance
Features:
2AK: Inlet and outlet separator
AK + EK: Inlet separator, exhaust vapour condenser
PC 510 select (two-stage) / 610 select (three-stage) : with AK + EK; 1 electronically controlled vacuum port
PC 511 select (two-stage) / 611 select (three-stage) : with AK + EK; 1 electronically controlled and 1 manually controlled vacuum port
PC 520 select (two-stage) / 620 select (three-stage) : with AK + EK; 2 electronically controlled vacuum ports
Characteristics and applications:
Without vacuum control:
MZ 2C NT +2AK: e.g. filtration, distillation without condensation at the outlet
MZ 2C NT +AK+EK: Well-proven unit for a wide range of applications for the single-user, e.g. gel drying, distillation, vacuum concentrator. For solvents with medium to low volatility.
MD 1C +AK+EK: Space-saving single-user configuration. For high-boiling-point solvents.
MD 4C NT + AK+EK: Larger or multi-user applications the local vacuum network VACUU·LAN®. For high-boiling solvents.
MV 10C NT +EK: Four-stage diaphragm pump with exhaust vapour condenser. For particularly high demands regarding low ultimate vacuum and pumping speed in chemistry laboratories, pilot plant or small production units.
With vacuum controller:
PC 510 select / 511 select: Well-proven units for a wide range of processes in chemistry laboratories, e.g. all common solvents. PC 511 select with addtional manually controlled vacuum port.
PC 610 select / 611 select: Proven solution for supporting electronically controlled evaporation or drying processes even with many high boiling point solvents. PC 611 select with additional manually controlled vacuum port.
PC 520 select / 620 select: Compact solution for simultaneous operation of two electronically controlled vacuum applications with one single pump.
Type PC 510 select
Dimensions (W x D x H) 243 x 418 x 457 mm
max. discharge flow 2.0 / 2.3 m³ / hr.
Ultimate vacuum without / with gas ballast 7 / 12 mbar (abs.)
Connector CEE
Compact design, ready to use, no set-up required. Constructed in highly chemical resistant materials. Quiet operation.
-100% oil-free pumping of gases
-gas ballast as standard for working with condensable vapours
-good ultimate vacuum even with gas ballast
-high vapour tolerance for water and solvents
-long service life, low maintenance
Features:
2AK: Inlet and outlet separator
AK + EK: Inlet separator, exhaust vapour condenser
PC 510 select (two-stage) / 610 select (three-stage) : with AK + EK; 1 electronically controlled vacuum port
PC 511 select (two-stage) / 611 select (three-stage) : with AK + EK; 1 electronically controlled and 1 manually controlled vacuum port
PC 520 select (two-stage) / 620 select (three-stage) : with AK + EK; 2 electronically controlled vacuum ports
Characteristics and applications:
Without vacuum control:
MZ 2C NT +2AK: e.g. filtration, distillation without condensation at the outlet
MZ 2C NT +AK+EK: Well-proven unit for a wide range of applications for the single-user, e.g. gel drying, distillation, vacuum concentrator. For solvents with medium to low volatility.
MD 1C +AK+EK: Space-saving single-user configuration. For high-boiling-point solvents.
MD 4C NT + AK+EK: Larger or multi-user applications the local vacuum network VACUU·LAN®. For high-boiling solvents.
MV 10C NT +EK: Four-stage diaphragm pump with exhaust vapour condenser. For particularly high demands regarding low ultimate vacuum and pumping speed in chemistry laboratories, pilot plant or small production units.
With vacuum controller:
PC 510 select / 511 select: Well-proven units for a wide range of processes in chemistry laboratories, e.g. all common solvents. PC 511 select with addtional manually controlled vacuum port.
PC 610 select / 611 select: Proven solution for supporting electronically controlled evaporation or drying processes even with many high boiling point solvents. PC 611 select with additional manually controlled vacuum port.
PC 520 select / 620 select: Compact solution for simultaneous operation of two electronically controlled vacuum applications with one single pump.
Type PC 510 select
Dimensions (W x D x H) 243 x 418 x 457 mm
max. discharge flow 2.0 / 2.3 m³ / hr.
Ultimate vacuum without / with gas ballast 7 / 12 mbar (abs.)
Connector CEE
Varianty produktu
Pro zobrazení cen na míru se přihlašte do klientské sekce.
Kód produktu
Kód produktu
Kód BDL 9880911
Kód BDL 4670470 Kód výrobce
20733352 Type PC 520 select , Dimensions (W x D x H) 243 x 435 x 457 mm, max. discharge flow 2.0 / 2.3 m³ / hr., Ultimate vacuum without / with gas ballast 7 / 12 mbar (abs.), Connector UK
20733352 Type PC 520 select , Dimensions (W x D x H) 243 x 435 x 457 mm, max. discharge flow 2.0 / 2.3 m³ / hr., Ultimate vacuum without / with gas ballast 7 / 12 mbar (abs.), Connector UK
Kód BDL 9880837 Kód výrobce
20736700
Type MD 4C NT + AK + EK , Dimensions (W x D x H) 243 x 326 x 402 mm, max. discharge flow 3.4 / 3.8 m³ / hr., Ultimate vacuum without / with gas ballast 1.5 / 3 mbar (abs.), Connector CEE
20736700
Kód BDL 4670462 Kód výrobce
20733251 Type PC 511 select , Dimensions (W x D x H) 243 x 435 x 457 mm, max. discharge flow 2.0 / 2.3 m³ / hr., Ultimate vacuum without / with gas ballast 7 / 12 mbar (abs.), Connector CH
20733251 Type PC 511 select , Dimensions (W x D x H) 243 x 435 x 457 mm, max. discharge flow 2.0 / 2.3 m³ / hr., Ultimate vacuum without / with gas ballast 7 / 12 mbar (abs.), Connector CH
Kód BDL 6701344 Kód výrobce
20733000
Type PC 101 NT , Dimensions (W x D x H) 243 x 326 x 402 mm, max. discharge flow 2.0 / 2.3 m³ / hr., Ultimate vacuum without / with gas ballast 7 /12 mbar (abs.), Connector CEE
20733000
Kód BDL 4670445 Kód výrobce
20732602 Type MZ 2C NT + AK + EK , Dimensions (W x D x H) 242 x 319 x 309 mm, max. discharge flow 2.0 / 2.3 m³ / hr., Ultimate vacuum without / with gas ballast 7 / 12 mbar (abs.), Connector UK
20732602 Type MZ 2C NT + AK + EK , Dimensions (W x D x H) 242 x 319 x 309 mm, max. discharge flow 2.0 / 2.3 m³ / hr., Ultimate vacuum without / with gas ballast 7 / 12 mbar (abs.), Connector UK
Kód BDL 4665353 Kód výrobce
20733150 Type PC 510 select , Dimensions (W x D x H) 243 x 418 x 457 mm, max. discharge flow 2.0 / 2.3 m³ / hr., Ultimate vacuum without / with gas ballast 7 / 12 mbar (abs.), Connector CEE
20733150 Type PC 510 select , Dimensions (W x D x H) 243 x 418 x 457 mm, max. discharge flow 2.0 / 2.3 m³ / hr., Ultimate vacuum without / with gas ballast 7 / 12 mbar (abs.), Connector CEE
Kód BDL 6241292 Kód výrobce
20737000
Type PC 201 NT , Dimensions (W x D x H) 243 x 326 x 402 mm, max. discharge flow 3.4 / 3.8 m³ / hr., Ultimate vacuum without / with gas ballast 1.5 / 3 mbar (abs.), Connector CEE
20737000
Kód BDL 9880970 Kód výrobce
20743602
Type MD 12C NT + AK + EK , Dimensions (W x D x H) 387 x 616 x 395 mm, max. discharge flow 12.0 / 13.3 m³ / hr., Ultimate vacuum without / with gas ballast 2 / 4 mbar (abs.), Connector UK
20743602
Kód BDL 9880967 Kód výrobce
20743502
Type MD 12C NT + EK , Dimensions (W x D x H) 387 x 528 x 395 mm, max. discharge flow 12.0 / 13.3 m³ / hr., Ultimate vacuum without / with gas ballast 2 / 4 mbar (abs.), Connector UK
20743502
Kód BDL 9880925 Kód výrobce
20696621
Type MD 1C + AK + EK , Dimensions (W x D x H) 239 x 316 x 405 mm, max. discharge flow 1.3 / 1.5 m³ / hr., Ultimate vacuum without / with gas ballast 2 / 4 mbar (abs.), Connector CH
20696621
Kód BDL 9880922 Kód výrobce
20732801
Type MZ 2C NT + AK SYNCHRO + EK , Dimensions (W x D x H) 248 x 326 x 402 mm, max. discharge flow 2.0 / 2.3 m³ / hr., Ultimate vacuum without / with gas ballast 7 / 12 mbar (abs.), Connector CH
20732801
Kód BDL 6274327 Kód výrobce
20733151 Type PC 510 select , Dimensions (W x D x H) 243 x 418 x 457 mm, max. discharge flow 2.0 / 2.3 m³ / hr., Ultimate vacuum without / with gas ballast 7 / 12 mbar (abs.), Connector CH
20733151 Type PC 510 select , Dimensions (W x D x H) 243 x 418 x 457 mm, max. discharge flow 2.0 / 2.3 m³ / hr., Ultimate vacuum without / with gas ballast 7 / 12 mbar (abs.), Connector CH
Kód BDL 9880919
Type PC 620 NT , Dimensions (W x D x H) 361 x 435 x 444 mm, max. discharge flow 3,4 / 3,8 m³ / hr., Ultimate vacuum without / with gas ballast 1,5 / 3 mbar (abs.), Connector CEE
Kód BDL 4670533 Kód výrobce
20737350 Type PC 620 select , Dimensions (W x D x H) 243 x 435 x 457 mm, max. discharge flow 3.4 / 3.8 m³ / hr., Ultimate vacuum without / with gas ballast 1.5 / 3 mbar (abs.), Connector CEE
20737350 Type PC 620 select , Dimensions (W x D x H) 243 x 435 x 457 mm, max. discharge flow 3.4 / 3.8 m³ / hr., Ultimate vacuum without / with gas ballast 1.5 / 3 mbar (abs.), Connector CEE
Kód BDL 9880916
Type PC 610 NT , Dimensions (W x D x H) 243 x 419 x 444 mm, max. discharge flow 3,4 / 3,8 m³ / hr., Ultimate vacuum without / with gas ballast 1,5 / 3 mbar (abs.), Connector CEE
Kód BDL 4670525 Kód výrobce
20737250 Type PC 611 select , Dimensions (W x D x H) 243 x 435 x 457 mm, max. discharge flow 3.4 / 3.8 m³ / hr., Ultimate vacuum without / with gas ballast 1.5 / 3 mbar (abs.), Connector CEE
20737250 Type PC 611 select , Dimensions (W x D x H) 243 x 435 x 457 mm, max. discharge flow 3.4 / 3.8 m³ / hr., Ultimate vacuum without / with gas ballast 1.5 / 3 mbar (abs.), Connector CEE
Kód BDL 9880913
Type PC 511 NT , Dimensions (W x D x H) 243 x 435 x 444 mm, max. discharge flow 2,0 / 2,3 m³ / hr., Ultimate vacuum without / with gas ballast 7 / 12 mbar (abs.), Connector CH
Kód BDL 4670516 Kód výrobce
20737150 Type PC 610 select , Dimensions (W x D x H) 243 x 419 x 457 mm, max. discharge flow 3.4 / 3.8 m³ / hr., Ultimate vacuum without / with gas ballast 1.5 / 3 mbar (abs.), Connector CEE
20737150 Type PC 610 select , Dimensions (W x D x H) 243 x 419 x 457 mm, max. discharge flow 3.4 / 3.8 m³ / hr., Ultimate vacuum without / with gas ballast 1.5 / 3 mbar (abs.), Connector CEE
Kód BDL 9880910
Type PC 510 NT , Dimensions (W x D x H) 243 x 419 x 444 mm, max. discharge flow 2,0 / 2,3 m³ / hr., Ultimate vacuum without / with gas ballast 7 / 12 mbar (abs.), Connector CEE
Kód BDL 4670469 Kód výrobce
20733351 Type PC 520 select , Dimensions (W x D x H) 243 x 435 x 457 mm, max. discharge flow 2.0 / 2.3 m³ / hr., Ultimate vacuum without / with gas ballast 7 / 12 mbar (abs.), Connector CH
20733351 Type PC 520 select , Dimensions (W x D x H) 243 x 435 x 457 mm, max. discharge flow 2.0 / 2.3 m³ / hr., Ultimate vacuum without / with gas ballast 7 / 12 mbar (abs.), Connector CH
Kód BDL 9880832 Kód výrobce
20732500
Type MZ 2C NT + 2AK , Dimensions (W x D x H) 243 x 319 x 309 mm, max. discharge flow 2.0 / 2.3 m³ / hr., Ultimate vacuum without / with gas ballast 7 / 12 mbar (abs.), Connector CEE
20732500
Kód BDL 4670456 Kód výrobce
20733152 Type PC 510 select , Dimensions (W x D x H) 243 x 418 x 457 mm, max. discharge flow 2.0 / 2.3 m³ / hr., Ultimate vacuum without / with gas ballast 7 / 12 mbar (abs.), Connector UK
20733152 Type PC 510 select , Dimensions (W x D x H) 243 x 418 x 457 mm, max. discharge flow 2.0 / 2.3 m³ / hr., Ultimate vacuum without / with gas ballast 7 / 12 mbar (abs.), Connector UK
Kód BDL 4670442 Kód výrobce
20732502 Type MZ 2C NT + 2AK , Dimensions (W x D x H) 243 x 319 x 309 mm, max. discharge flow 2.0 / 2.3 m³ / hr., Ultimate vacuum without / with gas ballast 7 / 12 mbar (abs.), Connector UK
20732502 Type MZ 2C NT + 2AK , Dimensions (W x D x H) 243 x 319 x 309 mm, max. discharge flow 2.0 / 2.3 m³ / hr., Ultimate vacuum without / with gas ballast 7 / 12 mbar (abs.), Connector UK
Kód BDL 6260612 Kód výrobce
22613944
Type MZ 2C NT + AK + EK PELTRONIC , Dimensions (W x D x H) 243 x 326 x 402 mm, max. discharge flow 2.0 / 2.3 m³ / hr., Ultimate vacuum without / with gas ballast 7 / 12 mbar (abs.), Connector -
22613944
Kód BDL 6234067 Kód výrobce
20732600
Type MZ 2C NT + AK + EK , Dimensions (W x D x H) 242 x 326 x 402 mm, max. discharge flow 2.0 / 2.3 m³ / hr., Ultimate vacuum without / with gas ballast 7 / 12 mbar (abs.), Connector CEE
20732600
Kód BDL 6234067.001
Chemical-membrane pump MZ 2C NT + AK + EK two-stage, 230 V, 50 Hz, plug CEE
Kód BDL 9880969 Kód výrobce
20743601
Type MD 12C NT + AK + EK , Dimensions (W x D x H) 387 x 616 x 395 mm, max. discharge flow 12.0 / 13.3 m³ / hr., Ultimate vacuum without / with gas ballast 2 / 4 mbar (abs.), Connector CH
20743601
Kód BDL 9880966 Kód výrobce
20743501
Type MD 12C NT + EK , Dimensions (W x D x H) 387 x 528 x 395 mm, max. discharge flow 12.0 / 13.3 m³ / hr., Ultimate vacuum without / with gas ballast 2 / 4 mbar (abs.), Connector CH
20743501
Kód BDL 9880924 Kód výrobce
20736701
Type MD 4C NT + AK + EK , Dimensions (W x D x H) 242 x 326 x 402 mm, max. discharge flow 3.4 / 3.8 m³ / hr., Ultimate vacuum without / with gas ballast 1.5 / 3 mbar (abs.), Connector CH
20736701
Kód BDL 7983629 Kód výrobce
20733250 Type PC 511 select , Dimensions (W x D x H) 243 x 435 x 457 mm, max. discharge flow 2.0 / 2.3 m³ / hr., Ultimate vacuum without / with gas ballast 7 / 12 mbar (abs.), Connector CEE
20733250 Type PC 511 select , Dimensions (W x D x H) 243 x 435 x 457 mm, max. discharge flow 2.0 / 2.3 m³ / hr., Ultimate vacuum without / with gas ballast 7 / 12 mbar (abs.), Connector CEE
Kód BDL 9880921 Kód výrobce
20732800
Type MZ 2C NT + AK SYNCHRO + EK , Dimensions (W x D x H) 243 x 326 x 402 mm, max. discharge flow 2.0 / 2.3 m³ / hr., Ultimate vacuum without / with gas ballast 7 / 12 mbar (abs.), Connector CEE
20732800
Kód BDL 4670535 Kód výrobce
20737352 Type PC 620 select , Dimensions (W x D x H) 243 x 435 x 457 mm, max. discharge flow 3.4 / 3.8 m³ / hr., Ultimate vacuum without / with gas ballast 1.5 / 3 mbar (abs.), Connector UK
20737352 Type PC 620 select , Dimensions (W x D x H) 243 x 435 x 457 mm, max. discharge flow 3.4 / 3.8 m³ / hr., Ultimate vacuum without / with gas ballast 1.5 / 3 mbar (abs.), Connector UK
Kód BDL 9880918
Type PC 611 NT , Dimensions (W x D x H) 243 x 435 x 444 mm, max. discharge flow 3,4 / 3,8 m³ / hr., Ultimate vacuum without / with gas ballast 1,5 / 3 mbar (abs.), Connector CEE
Kód BDL 4670527 Kód výrobce
20737252 Type PC 611 select , Dimensions (W x D x H) 243 x 435 x 457 mm, max. discharge flow 3.4 / 3.8 m³ / hr., Ultimate vacuum without / with gas ballast 1.5 / 3 mbar (abs.), Connector UK
20737252 Type PC 611 select , Dimensions (W x D x H) 243 x 435 x 457 mm, max. discharge flow 3.4 / 3.8 m³ / hr., Ultimate vacuum without / with gas ballast 1.5 / 3 mbar (abs.), Connector UK
Kód BDL 9880915
Type PC 520 NT , Dimensions (W x D x H) 361 x 435 x 444 mm, max. discharge flow 2,0 / 2,3 m³ / hr., Ultimate vacuum without / with gas ballast 7 / 12 mbar (abs.), Connector CH
Kód BDL 4670518 Kód výrobce
20737152 Type PC 610 select , Dimensions (W x D x H) 243 x 419 x 457 mm, max. discharge flow 3.4 / 3.8 m³ / hr., Ultimate vacuum without / with gas ballast 1.5 / 3 mbar (abs.), Connector UK
20737152 Type PC 610 select , Dimensions (W x D x H) 243 x 419 x 457 mm, max. discharge flow 3.4 / 3.8 m³ / hr., Ultimate vacuum without / with gas ballast 1.5 / 3 mbar (abs.), Connector UK
Kód BDL 9880912
Type PC 511 NT , Dimensions (W x D x H) 243 x 435 x 444 mm, max. discharge flow 2,0 / 2,3 m³ / hr., Ultimate vacuum without / with gas ballast 7 / 12 mbar (abs.), Connector CEE
Kód BDL 4670506 Kód výrobce
20736702 Type MD 4C NT + AK + EK , Dimensions (W x D x H) 248 x 326 x 402 mm, max. discharge flow 3.4 / 3.8 m³ / hr., Ultimate vacuum without / with gas ballast 1.5 / 3 mbar (abs.), Connector UK
20736702 Type MD 4C NT + AK + EK , Dimensions (W x D x H) 248 x 326 x 402 mm, max. discharge flow 3.4 / 3.8 m³ / hr., Ultimate vacuum without / with gas ballast 1.5 / 3 mbar (abs.), Connector UK
Kód BDL 9880844 Kód výrobce
20732501
Type MZ 2C NT + 2AK , Dimensions (W x D x H) 242 x 319 x 309 mm, max. discharge flow 2.0 / 2.3 m³ / hr., Ultimate vacuum without / with gas ballast 7 / 12 mbar (abs.), Connector CH
20732501
Kód BDL 4670463 Kód výrobce
20733252 Type PC 511 select , Dimensions (W x D x H) 243 x 435 x 457 mm, max. discharge flow 2.0 / 2.3 m³ / hr., Ultimate vacuum without / with gas ballast 7 / 12 mbar (abs.), Connector UK
20733252 Type PC 511 select , Dimensions (W x D x H) 243 x 435 x 457 mm, max. discharge flow 2.0 / 2.3 m³ / hr., Ultimate vacuum without / with gas ballast 7 / 12 mbar (abs.), Connector UK
Kód BDL 9880828 Kód výrobce
20696620
Type MD 1C + AK + EK , Dimensions (W x D x H) 239 x 316 x 405 mm, max. discharge flow 1.3 / 1.5 m³ / hr., Ultimate vacuum without / with gas ballast 2 / 4 mbar (abs.), Connector CEE
20696620
Kód BDL 4670449 Kód výrobce
20732802 Type MZ 2C NT + AK SYNCHRO + EK , Dimensions (W x D x H) 243 x 310 x 313 mm, max. discharge flow 2.0 / 2.3 m³ / hr., Ultimate vacuum without / with gas ballast 7 / 12 mbar (abs.), Connector UK
20732802 Type MZ 2C NT + AK SYNCHRO + EK , Dimensions (W x D x H) 243 x 310 x 313 mm, max. discharge flow 2.0 / 2.3 m³ / hr., Ultimate vacuum without / with gas ballast 7 / 12 mbar (abs.), Connector UK
Kód BDL 4670345 Kód výrobce
20696622 Type MD 1C + AK + EK , Dimensions (W x D x H) 239 x 316 x 405 mm, max. discharge flow 1.3 / 1.5 m³ / hr., Ultimate vacuum without / with gas ballast 2 / 4 mbar (abs.), Connector UK
20696622 Type MD 1C + AK + EK , Dimensions (W x D x H) 239 x 316 x 405 mm, max. discharge flow 1.3 / 1.5 m³ / hr., Ultimate vacuum without / with gas ballast 2 / 4 mbar (abs.), Connector UK
Kód BDL 6245040 Kód výrobce
20736800
Type MD 4C NT , Dimensions (W x D x H) 248 x 326 x 402 mm, max. discharge flow 3.4 / 3.8 m³ / hr., Ultimate vacuum without / with gas ballast 1.5 / 3 mbar (abs.), Connector CEE
20736800
Kód BDL 9880976 Kód výrobce
20744500
Type MV 10C NT + EK , Dimensions (W x D x H) 528 x 387 x 395 mm, max. discharge flow 9.5 / 10.7 m³ / hr., Ultimate vacuum without / with gas ballast 0.9 / 1.5 mbar (abs.), Connector CEE
20744500
Kód BDL 6231821 Kód výrobce
20732700
Type MZ 2C NT + AK + M + D , Dimensions (W x D x H) 243 x 310 x 313 mm, max. discharge flow 2.0 / 2.3 m³ / hr., Ultimate vacuum without / with gas ballast 7 / 12 mbar (abs.), Connector CEE
20732700
Kód BDL 9880968 Kód výrobce
20743600
Type MD 12C NT + AK + EK , Dimensions (W x D x H) 387 x 616 x 395 mm, max. discharge flow 12.0 / 13.3 m³ / hr., Ultimate vacuum without / with gas ballast 2 / 4 mbar (abs.), Connector CEE
20743600
Kód BDL 9880965 Kód výrobce
20743500
Type MD 12C NT + EK , Dimensions (W x D x H) 387 x 528 x 395 mm, max. discharge flow 12.0 / 13.3 m³ / hr., Ultimate vacuum without / with gas ballast 2 / 4 mbar (abs.), Connector CEE
20743500
Kód BDL 9880923 Kód výrobce
20732601
Type MZ 2C NT + AK + EK , Dimensions (W x D x H) 242 x 326 x 402 mm, max. discharge flow 2.0 / 2.3 m³ / hr., Ultimate vacuum without / with gas ballast 7 / 12 mbar (abs.), Connector CH
20732601
Kód BDL 7983628 Kód výrobce
20733350 Type PC 520 select , Dimensions (W x D x H) 243 x 435 x 457 mm, max. discharge flow 2.0 / 2.3 m³ / hr., Ultimate vacuum without / with gas ballast 7 / 12 mbar (abs.), Connector CEE
20733350 Type PC 520 select , Dimensions (W x D x H) 243 x 435 x 457 mm, max. discharge flow 2.0 / 2.3 m³ / hr., Ultimate vacuum without / with gas ballast 7 / 12 mbar (abs.), Connector CEE
Kód BDL 9880920
Type PC 620 NT , Dimensions (W x D x H) 361 x 435 x 444 mm, max. discharge flow 3,4 / 3,8 m³ / hr., Ultimate vacuum without / with gas ballast 1,5 / 3 mbar (abs.), Connector CH
Kód BDL 4670534 Kód výrobce
20737351 Type PC 620 select , Dimensions (W x D x H) 243 x 435 x 457 mm, max. discharge flow 3.4 / 3.8 m³ / hr., Ultimate vacuum without / with gas ballast 1.5 / 3 mbar (abs.), Connector CH
20737351 Type PC 620 select , Dimensions (W x D x H) 243 x 435 x 457 mm, max. discharge flow 3.4 / 3.8 m³ / hr., Ultimate vacuum without / with gas ballast 1.5 / 3 mbar (abs.), Connector CH
Kód BDL 9880917
Type PC 610 NT , Dimensions (W x D x H) 243 x 419 x 444 mm, max. discharge flow 3,4 / 3,8 m³ / hr., Ultimate vacuum without / with gas ballast 1,5 / 3 mbar (abs.), Connector CH
Kód BDL 4670526 Kód výrobce
20737251 Type PC 611 select , Dimensions (W x D x H) 243 x 435 x 457 mm, max. discharge flow 3.4 / 3.8 m³ / hr., Ultimate vacuum without / with gas ballast 1.5 / 3 mbar (abs.), Connector CH
20737251 Type PC 611 select , Dimensions (W x D x H) 243 x 435 x 457 mm, max. discharge flow 3.4 / 3.8 m³ / hr., Ultimate vacuum without / with gas ballast 1.5 / 3 mbar (abs.), Connector CH
Kód BDL 9880914
Type PC 520 NT , Dimensions (W x D x H) 361 x 435 x 444 mm, max. discharge flow 2,0 / 2,3 m³ / hr., Ultimate vacuum without / with gas ballast 7 / 12 mbar (abs.), Connector CEE
Kód BDL 4670517 Kód výrobce
20737151 Type PC 610 select , Dimensions (W x D x H) 243 x 419 x 457 mm, max. discharge flow 3.4 / 3.8 m³ / hr., Ultimate vacuum without / with gas ballast 1.5 / 3 mbar (abs.), Connector CH
20737151 Type PC 610 select , Dimensions (W x D x H) 243 x 419 x 457 mm, max. discharge flow 3.4 / 3.8 m³ / hr., Ultimate vacuum without / with gas ballast 1.5 / 3 mbar (abs.), Connector CH
