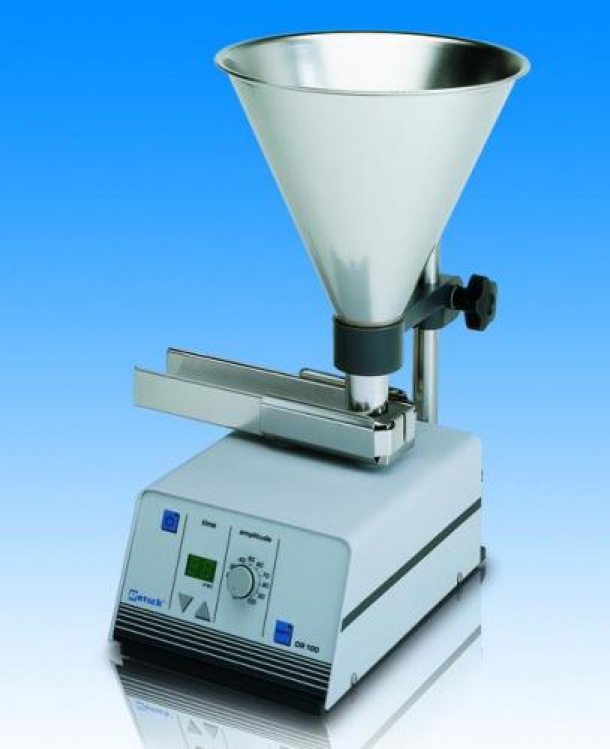

Vibratory Feeder DR 100
For the continuous, automatic feeding of bulk materials into sample dividers, mills, scales or analytical and measuring instruments. Also suitable for filling, dosing, allocating and applying. Universally applicable, for accurate and reproducible results.

-Powerful drive for even and continuous material feed
-Material bed height and volume flow can be variably adjusted
-Digital speed and time setting
-Compact control and feed unit
-Easy to clean plug-in chutes

Scope of delivery complete unit: feeding unit, plug-in chute 40 mm, funnel and mounting bracket.

Further feeding attachments and plug-in chutes available as accessories.

Type DR 100, drive unit
max. sample size 999999 ml
Width 260 mm
Depth 280 mm
Height 420 mm
Net weight 10 kg
Max. Sample glass volume ml
Max. speed rpm
Division ratio 1 : 2
Division ratio 1 : 6
Division ratio 1 : 8
Division ratio 1 : 10
Division ratio 1 : 30
Rated capacity kW
Type of auxiliary energy 230V AC
Plug type EU
Maximum Throughput/ Charge
Dimensions (W x D x H) 260 x 280 x 420 mm
