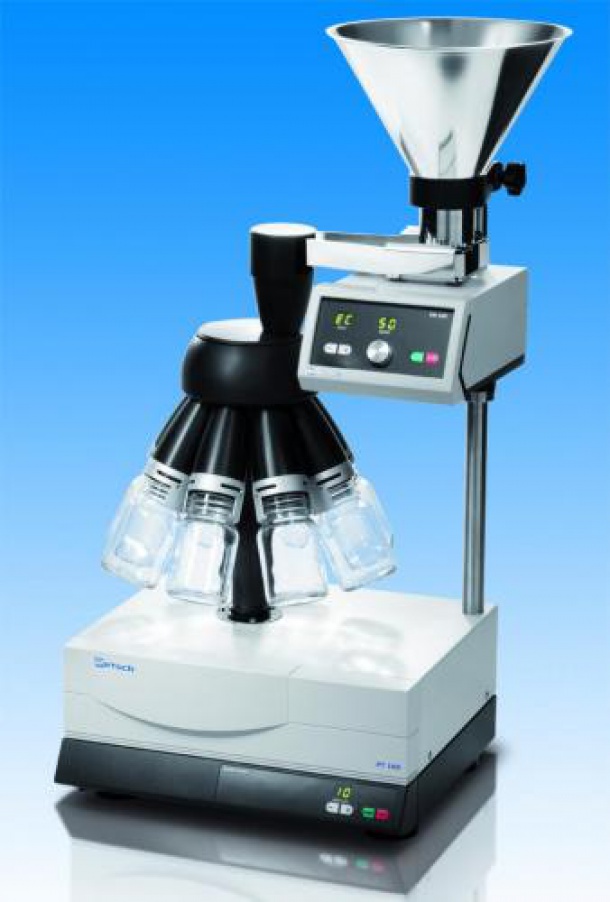

Sample Divider PT 100 with vibratory feeder DR 100
Rotary tube divider for the representative sample division with an extremely high division accuracy. Rapid and easy handling of sample vessels thanks to quick-release clamps.

Scope of delivery: PT 100 incl. dividing head with 8 quick-release sample outlets, vibratory feeder DR 100/40 and 10 sample bottles (250ml).
Specifications PT 100
Feed size: up to 10mm
Number of samples: 8 (6 or 10 heads also available on request)
Throughput/charge: up to 5000ml
Dimensions (W x D x H): 580 x 420 x 910mm
Weight: approx.: 34kg
Supply requirements: 230V, 50Hz

Type PT 100
max. sample size 5000 ml
max. Material feed size 10 mm
Width 580 mm
Depth 420 mm
Height 910 mm
Net weight 33.500000 kg
Max. Sample glass volume 500 ml
Max. speed 100 rpm
Division ratio No 1 : 2
Division ratio Yes 1 : 6
Division ratio Yes 1 : 8
Division ratio Yes 1 : 10
Division ratio No 1 : 30
Rated capacity kW
Type of auxiliary energy 230V AC
Plug type EU
Maximum Throughput/ Charge
Dimensions (W x D x H) 580 x 420 x 910 mm
