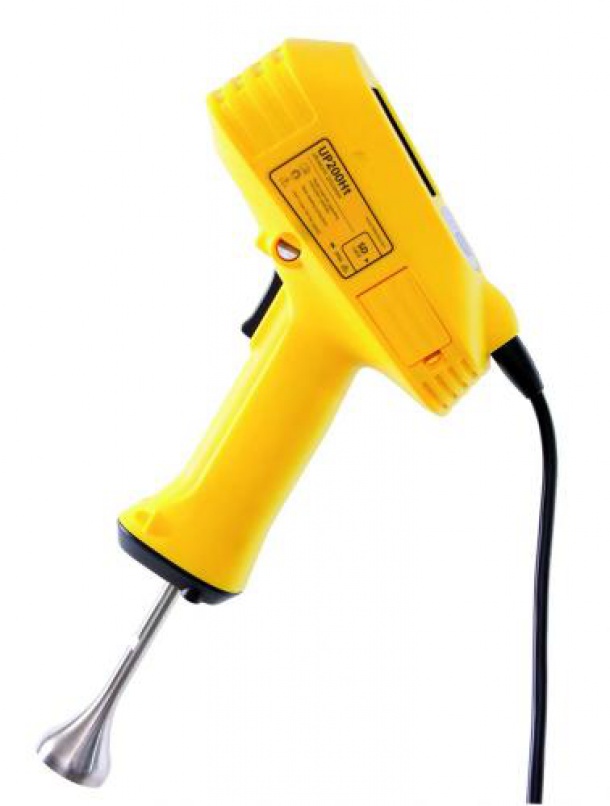

Ultrasonic Homogeniser UP200Ht
Digital ultrasonic processor, 200 watts, for handheld and stand-mounted use, frequency 26kHz (auto-scan), amplitude 20-100%, pulse 10-100%, titanium horn Ø10mm (max. amplitude at horn 70µm), colored touch-screen, amplitude or power control, countdown (timer): 0.1sec to 99 days, shutdown when final energy input reached (Ws, Wh, kWh), autom. Calibration of the amplitude-dependent idle power, data recording: amplitude, power, time, temperature on internal SD/USB ComboCard (1GB), display and remote control via browser on PC/MAC without software installation, remote control via PLC, with temperature sensor, temperature indication: °C/°F (-50°C to 200°C), temperature monitoring, dry running protected, sample illumination, anti-bacterial plastic housing, simplified exchange sonotrodes, power supply 100-240V~, 50-60Hz, IP41 grade, set weight: 1300g, Carrying case incl. fixture for stand STH-12 and 3m network cable

Type UP200Ht
min. sample volume 0.10 ml
max. sample volume 2000 ml
Pulsation 10 - 100 %
max. amplitude µm
min. amplitude control 20 %
max. amplitude control 100 %
Ultrasonic nominal power 200 W
Operating frequency 26 kHz
min. Runtime / timer 00:00:00 Hr: min: sec
max. Runtime / timer 12:00:00 Hr: min: sec
Continuous operation No
Dimension HF generator (width) mm
Dimension HF generator (length) mm
Dimension HF generator (height) mm
Weight HF generator 1.300000 kg
Weight ultrasonic transducer kg
Dimension ultrasonic transducer (Ø) mm
Dimension ultrasonic transducer (length) mm
Type of auxiliary energy 24 VDC, 9 A Power adaptor: 100-240 VAC
