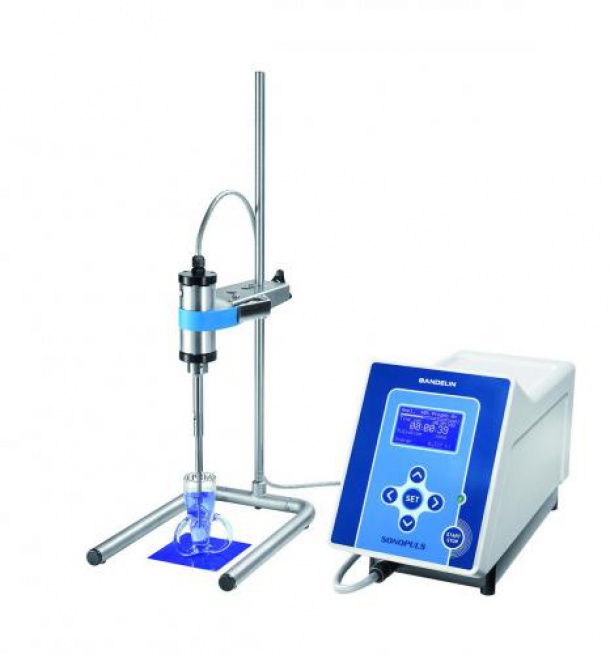

Ultrasonic homogeniser, SONOPULS HD 4050
For volumes from 0.5 to 100 ml. Ready-to-operate set for volumes from 0.5 to 20 ml consisting of:
-HF generator GM 4200
-Ultrasonic converter UW 50
-Titanium probe TS 102, diam. 2 mm

Further Titanium probes with diam. 3 mm, 4.5 mm and 6 mm available on request.
HF generator
Dimensions (W x D x H): GM 4200
150 x 335 x 220 mm
Converter UW 50
Dimensions (diam. x L): 45 x 175 mm
Ultrasonic nominal power: max. 50 W

Type SONOPULS HD 4050
min. sample volume 0.50 ml
max. sample volume 20 ml
Pulsation ON cycles: 0.2 ...600 s OFF cycles: 0.3 ...600 s
max. amplitude 125 µm
min. amplitude control 10 %
max. amplitude control 100 %
Ultrasonic nominal power 50 W
Operating frequency 20 kHz
min. Runtime / timer 00:00:00 Hr: min: sec
max. Runtime / timer 09:59:59 Hr: min: sec
Continuous operation +
Dimension HF generator (width) 150 mm
Dimension HF generator (length) 335 mm
Dimension HF generator (height) 220 mm
Weight HF generator kg
Weight ultrasonic transducer kg
Dimension ultrasonic transducer (Ø) 45 mm
Dimension ultrasonic transducer (length) 175 mm
Type of auxiliary energy 230 V AC, 50/60 Hz (alternativ 115 V~, 50/60 Hz)
