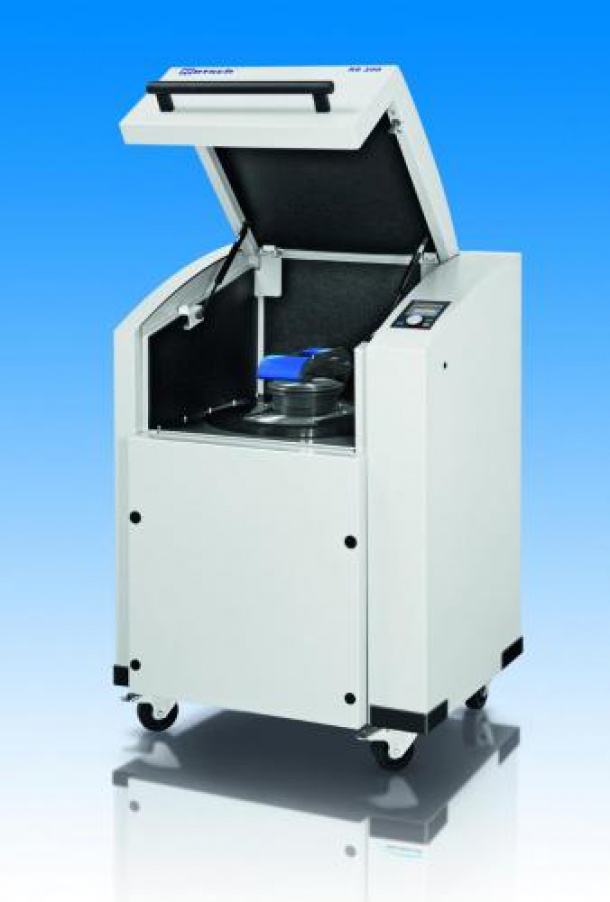

Vibratory Disc Mill RS 200
The Vibratory Disc Mill RS 200 is suitable for the extremely quick, loss-free and reproducible grinding of hard, brittle and fibrous materials to analytical fineness. The grinding results achieve a high degree of reproducibility even after very short grinding times. The RS 200 is primarily used for sample preparation for spectral analysis.

Features:
-Reproducible results due to ''Stabilized-Plane-Drive''
-Variable speed 700 to 1500 rpm, stepless
-Extremely short grinding time
-10 Standard Operating Procedures storable
-Grinding tools in 5 different materials
-Easy handling of the grinding set due to new ergonomic design and new carry handle
-New quick-action grinding set clamping system for convenient and safe tightening
-Protection of the grinding set (reduced maximum speed of 1200 and 700 rpm respectively) due to automatic tungsten carbide and agate detection
-Easy 1-button operation with colored graphics display and optimized menu structure
Specifications
Feed size*: < 15mm
Ultimate fineness**: < 20µm
Batch size/Feeding quantity: 35 to 150ml
Grinding time setting: digital, 1 second - 99 minutes 59 seconds
Dimensions (W x D x H): 836 x 780 x 1220mm
Weight: approx. 210 kg
* depending on feed material and grinding set volume
**depending on feed material

Type RS 200
Min. speed 700 rpm
Max. speed 1500 rpm
Max. Feed quantity/ Flow rate 250 ml
max. Ult. fineness mm
No. of grinding stations 1
Feed size 15 mm
Width mm
Depth mm
Height mm
Net weight kg
Max. throughput l/h
Max. throughput kg/h
Max. volume of work 250 ml
max. Aufgabeguthärte Mohs
min. oscillation frequency Hz
max. oscillation frequency Hz
Protection class
Rated capacity kW
Type of auxiliary energy 230V AC
Plug type EU
Dimensions (W x D x H) 836 x 780 x 1220 mm
Grinding jars ml
