rotorový rychlomlýnek PULVERISETTE 14 třídaic line
Rapid rotor mill ''pulverisette 14'' w/o. rotor and sieve ring, incl. collecting vessel with lid, for 100-120 V/1~, 50-60 Hz, 1200
Výrobce
Zařazeno v kategoriích
Laboratorní mlýnky a mixéry
Popis

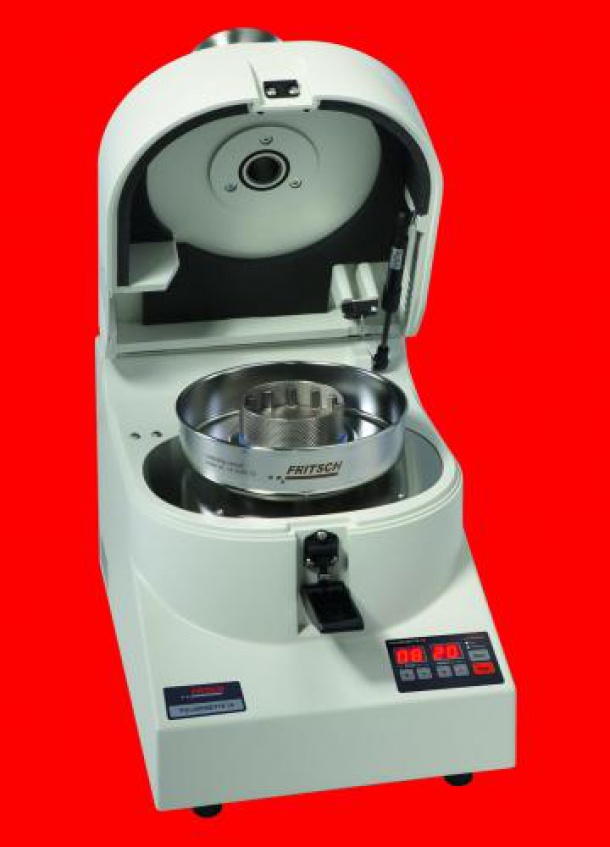

Variable Speed Rotor Mill PULVERISETTE 14 classic line
Ideal for fast, effective comminution of soft to medium-hard, brittle, fibrous materials, as well as difficult-to-mill and temperature-sensitive samples. Cryogenic grinding, dispersion and homogenisation are also one of the areas of operation. The variable speed rotor mill is an ultra-centrifugal mill with variable speed settings between 6.000rpm and 20.000rpm and automatic speed regulation for constant milling in the areas of analytic, biology, chemistry, agriculture and forestry, foodstuffs, plastics and textiles, pharmaceuticals, environment, RoHS. For optimal material feeding the Vibratory Feeder LABORETTE 24 (optional) is recommended.
Max. feed size: 10 mm
Throughput: up to 5 L/h
Sieve inserts: 0.08 to 6 mm
Final fineness (d50): 40 µm
Rotor speed: 6.000 to 20.000 rpm
Dimensions (W x D x H): 310 x 480 x 470 mm
Net weight: 23 kg
Type PULVERISETTE 14 classic line
Min. speed 6000 rpm
Max. speed 20000 rpm
Max. Feed quantity/ Flow rate ml
Max. throughput 5 l/h
max. Ult. fineness 0.080000 mm
No. of grinding stations 1
Feed size 10 mm
Width 310 mm
Depth 480 mm
Height 470 mm
Net weight 23 kg
Max. throughput kg/h
Max. volume of work ml
max. Aufgabeguthärte Mohs
min. oscillation frequency Hz
max. oscillation frequency Hz
Protection class
Rated capacity 1.100000 kW
Type of auxiliary energy 115/230, 50-60 Hz
Plug type EU
Dimensions (W x D x H) 310 x 480 x 470 mm
Grinding jars ml
Ideal for fast, effective comminution of soft to medium-hard, brittle, fibrous materials, as well as difficult-to-mill and temperature-sensitive samples. Cryogenic grinding, dispersion and homogenisation are also one of the areas of operation. The variable speed rotor mill is an ultra-centrifugal mill with variable speed settings between 6.000rpm and 20.000rpm and automatic speed regulation for constant milling in the areas of analytic, biology, chemistry, agriculture and forestry, foodstuffs, plastics and textiles, pharmaceuticals, environment, RoHS. For optimal material feeding the Vibratory Feeder LABORETTE 24 (optional) is recommended.
Max. feed size: 10 mm
Throughput: up to 5 L/h
Sieve inserts: 0.08 to 6 mm
Final fineness (d50): 40 µm
Rotor speed: 6.000 to 20.000 rpm
Dimensions (W x D x H): 310 x 480 x 470 mm
Net weight: 23 kg
Type PULVERISETTE 14 classic line
Min. speed 6000 rpm
Max. speed 20000 rpm
Max. Feed quantity/ Flow rate ml
Max. throughput 5 l/h
max. Ult. fineness 0.080000 mm
No. of grinding stations 1
Feed size 10 mm
Width 310 mm
Depth 480 mm
Height 470 mm
Net weight 23 kg
Max. throughput kg/h
Max. volume of work ml
max. Aufgabeguthärte Mohs
min. oscillation frequency Hz
max. oscillation frequency Hz
Protection class
Rated capacity 1.100000 kW
Type of auxiliary energy 115/230, 50-60 Hz
Plug type EU
Dimensions (W x D x H) 310 x 480 x 470 mm
Grinding jars ml
Varianty produktu
Pro zobrazení cen na míru se přihlašte do klientské sekce.
Kód produktu
Kód produktu
Kód BDL 9738277 Kód výrobce 14.5020.00
Kód BDL 9738276 Kód výrobce
14.5010.00
Rapid rotor mill ''pulverisette 14'' w/o. rotor and sieve ring, incl. collecting vessel with lid, for 100-120 V/1~, 50-60 Hz, 1200
14.5010.00
