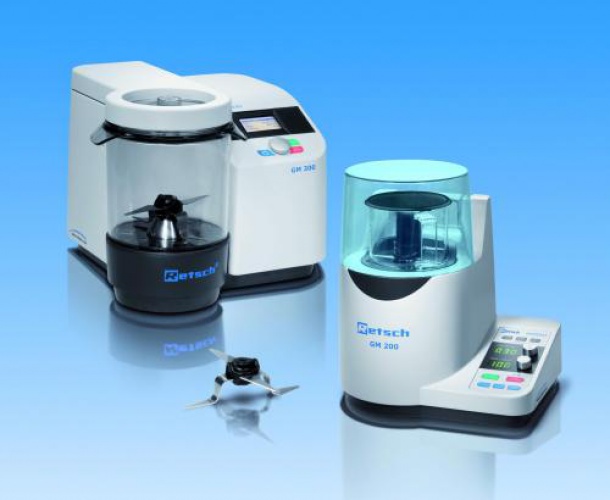

Knife Mills GRINDOMIX GM 200 / GM 300
The Knife Mills Grindomix GM 200 and GM 300 are suitable for the rapid and reproducible size reduction and homogenisation of food and feed materials. They can process substances with a high water, oil or fat content just as quickly and reliably as dry, soft and medium-hard products.

Features:
-Very fast and reproducible grinding and homogenisation of foodstuffs, final fineness < 300 µm
-Speed-controlled industrial motor
-Autoclavable grinding tools
-Boost function allows short-term increase of speed up to 14,000 rpm (GM 200)
-For sample volumes up to 700 ml (GM 200) or 4500 ml (GM 300)
-Digital display of grinding time and speed
-Interval operation possible
-Optional gravity lid for automatic adjustment of grinding chamber volume
-Storage of 4 program sequences possible (GM 200)
-8 or 10 parameter combinations can be stored (GM 200 / GM 300)
-Drive power : ~ 1000 W (GM 200); continuous 1.1 kW, short term peak 3 kW (GM 300)
-Electrical supply data: 220-240 V, 50-60 Hz

Supplied with:
GM 200 complete with 1L plastic container, standard lid and stainless steel knife.
GM 300 complete with 5L plastic container, standard lid, stainless steel knife and scraper.

Type GM 200
Min. speed 2000 rpm
Max. speed 14000 rpm
Max. Feed quantity/ Flow rate 700 ml
max. Ult. fineness 0.300000 mm
No. of grinding stations 1
Feed size 40 mm
Width 350 mm
Depth 392 mm
Height 275 mm
Net weight 10 kg
Max. throughput l/h
Max. throughput kg/h
Max. volume of work 700 ml
max. Aufgabeguthärte Mohs
min. oscillation frequency Hz
max. oscillation frequency Hz
Protection class
Rated capacity 1 kW
Type of auxiliary energy 230V AC
Plug type EU
Dimensions (W x D x H) 350 x 392 x 275 mm
Grinding jars ml
Maximum Throughput/ Charge 700
