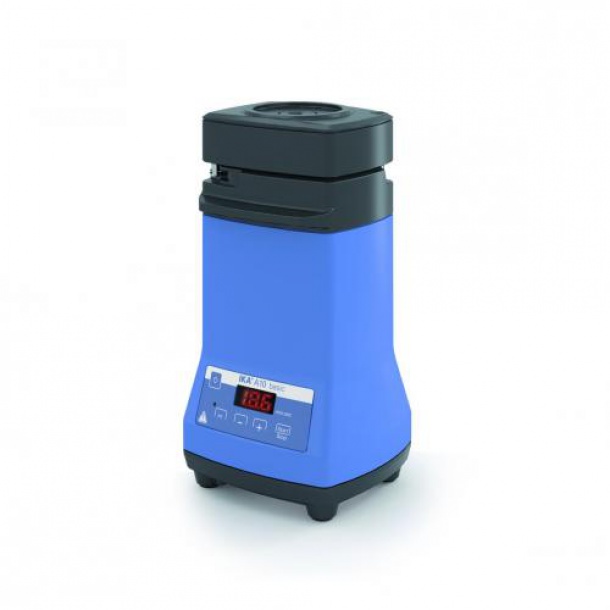

Grinding mill, A 10 basic
Newly designed batch mill for grinding of hard, brittle, soft and fibrous materials for volumes up to 50 ml. Because samples may be embrittled directly in the grinding chamber; tough, oily and aqueous samples can also be grinded. During development of the mill, particular emphasis was placed on safety. The mill will only start when the lid is closed and it can only be opened at standstill. A quick stop feature further increases the safety of user.

-Digital timer
-Counter: Display of grinding time
-Interval operation
-Brushless motor for long life and low noise
-Integrated cooling connections
-Error Code Display
-Easy handling with keypads
-Easy exchangeable beater/cutter for a variety of applications
-Grinding chamber reduction for small sample amounts ( included with delivery)
-Easy opening and closing of the lid with a bayonet lock
Specifications
Motor rating input / output: 300 / 240W
Speed: 25 000rpm
Chamber vol.: 50ml
Power-on time ON/OFF: 5 / 10min
Auto power off: yes
Tangential speed: 73m/s
Max. sample granule size: 6mm
Dimensions (W x D x H): 130 x 145 x 250 mm
Weight: 2,9 kg
IP code: IP 41
Supply requirements: 220 - 240 V 50/60 Hz

Type A 10 basic
Min. speed rpm
Max. speed 25000 rpm
Max. Feed quantity/ Flow rate 50 ml
max. Ult. fineness mm
No. of grinding stations 1
Feed size 6 mm
Width 130 mm
Depth 145 mm
Height 250 mm
Net weight 2.900000 kg
Max. throughput l/h
Max. throughput kg/h
Max. volume of work ml
max. Aufgabeguthärte 5 Mohs
min. oscillation frequency Hz
max. oscillation frequency Hz
Protection class
Rated capacity 0.240000 kW
Type of auxiliary energy 230V AC
Plug type EU
Dimensions (W x D x H) 130 x 145 x 250 mm
Grinding jars ml
