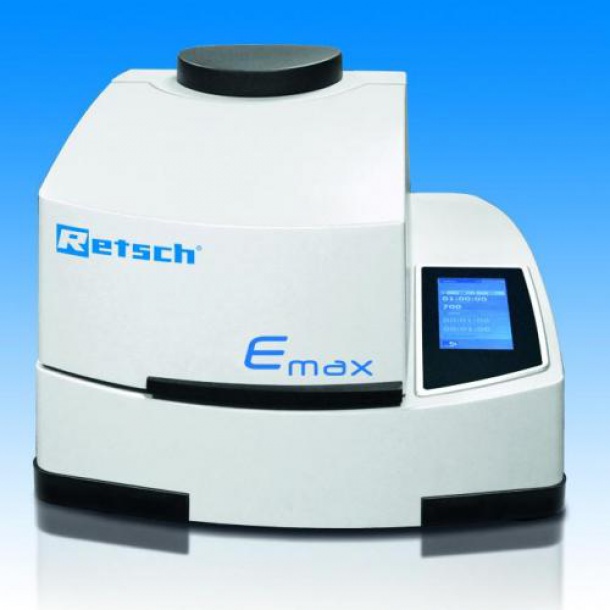

High Energy Ball Mill Emax
The Emax is an entirely new type of ball mill for high energy milling for medium-hard, hard, brittle and fibrous materials. The combination of high friction and impact results in extremely fine particles within the shortest amount of time. Thanks to the cooling system with water, the high energy input is effectively used for the grinding process without overheating the sample. The Emax is capable of continuous grinding operation without interruptions for cooling down. The high energy input in combination with the unique cooling system provides perfect conditions for effective mechanical alloying or grinding down to the nanometer range.

Features:
-Speed of 2000 rpm allows for ultra-fast and fine pulverization of the sample
-Controlled water cooling allows for continuous operation without cool down breaks
-Temperature-controlled grinding
-Narrow particle size distribution thanks to special jar design which improves mixing of the sample
-10 combinations of grinding parameters storable
-Operation with 2 grinding jars with integrated safety closure
-Range of jar materials allow for contamination free grinding

Accessories on request.
Specifications
Material feed size: < 5mm
Final fineness: < 80nm
Batch size / feed quantity: 2 x 45ml
Dimensions (W x D x H): 625 x 645 x 525mm
Power supply: 1-phase
Weight: approx. 120kg

Type Emax
Min. speed 300 rpm
Max. speed 2000 rpm
Max. Feed quantity/ Flow rate 125 ml
max. Ult. fineness mm
No. of grinding stations 2
Feed size 5 mm
Width 625 mm
Depth 645 mm
Height 525 mm
Net weight 120 kg
Max. throughput l/h
Max. throughput kg/h
Max. volume of work 90 ml
max. Aufgabeguthärte Mohs
min. oscillation frequency Hz
max. oscillation frequency Hz
Protection class
Rated capacity 2.600000 kW
Type of auxiliary energy 230V AC
Plug type EU
Dimensions (W x D x H) 625 x 645 x 525 mm
Grinding jars ml
