diskový mlýn PULVERISETTE 13 třídaic line
Disc mill ''pulverisette 13'' without milling disc 400V/3-, 50-60Hz, 2050W
Výrobce
Zařazeno v kategoriích
Laboratorní mlýnky a mixéry
Popis

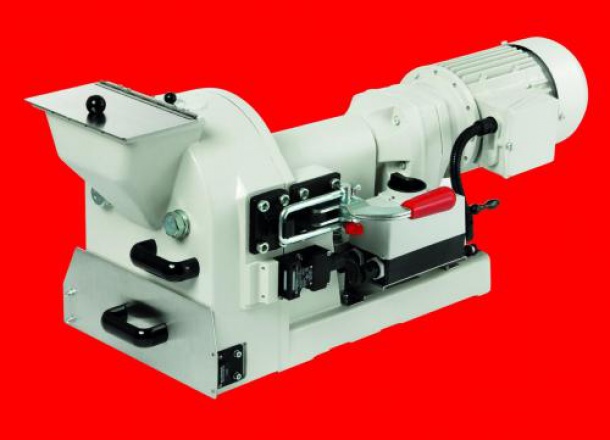

Disk mill PULVERISETTE 13 classic line
Ideal for intermittent and continuous fine grinding within the medium particle size range of soft to hard, tough and temperature-sensitive solids in the areas of mining and metallurgy, glass industry, ceramics industry, soil research, rocks and soils.
Max. feed size: 20 mm
Throughput: up to 150 kg/h
Final fineness: 0.1 to 12 mm
Supply requirements: 400 V/3~, 50 Hz, 1790 W
Dimensions (W x D x H): 440 x 870 x 40 mm
Net weight: 140 kg
Type PULVERISETTE 13 classic line
Min. speed 440 rpm
Max. speed 440 rpm
Max. Feed quantity/ Flow rate ml
Max. throughput 150 kg/h
max. Ult. fineness 0.100000 mm
No. of grinding stations 1
Feed size 20 mm
Width 440 mm
Depth 870 mm
Height 400 mm
Net weight 140 kg
Max. throughput l/h
Max. volume of work ml
max. Aufgabeguthärte Mohs
min. oscillation frequency Hz
max. oscillation frequency Hz
Protection class
Rated capacity kW
Type of auxiliary energy 3x380V
Plug type EU
Dimensions (W x D x H) 440 x 870 x 400 mm
Grinding jars ml
Ideal for intermittent and continuous fine grinding within the medium particle size range of soft to hard, tough and temperature-sensitive solids in the areas of mining and metallurgy, glass industry, ceramics industry, soil research, rocks and soils.
Max. feed size: 20 mm
Throughput: up to 150 kg/h
Final fineness: 0.1 to 12 mm
Supply requirements: 400 V/3~, 50 Hz, 1790 W
Dimensions (W x D x H): 440 x 870 x 40 mm
Net weight: 140 kg
Type PULVERISETTE 13 classic line
Min. speed 440 rpm
Max. speed 440 rpm
Max. Feed quantity/ Flow rate ml
Max. throughput 150 kg/h
max. Ult. fineness 0.100000 mm
No. of grinding stations 1
Feed size 20 mm
Width 440 mm
Depth 870 mm
Height 400 mm
Net weight 140 kg
Max. throughput l/h
Max. volume of work ml
max. Aufgabeguthärte Mohs
min. oscillation frequency Hz
max. oscillation frequency Hz
Protection class
Rated capacity kW
Type of auxiliary energy 3x380V
Plug type EU
Dimensions (W x D x H) 440 x 870 x 400 mm
Grinding jars ml
Varianty produktu
Pro zobrazení cen na míru se přihlašte do klientské sekce.
Kód produktu
Kód produktu
Kód BDL 9739001 Kód výrobce 13.1030.00
