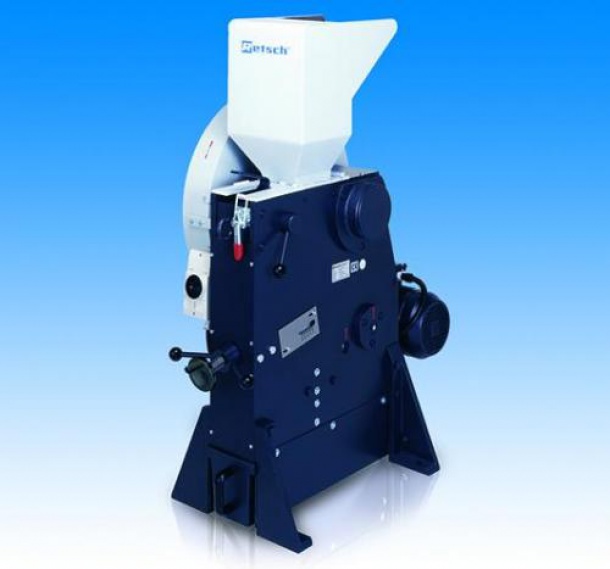

Jaw Crushers, BB 100, BB 200, BB 300
For rapid and gentle coarse grinding and crushing of hard, brittle and tough materials. Continuous gap adjustment with scale and zero-point adjustment for wear compensation. Excellent performance with enhanced final fineness, robust construction, fitted with quick-release hopper, receiver with safety switch and casing. Standard model is supplied with manganese steel breaking jaws.
Features:
-High throughput
-Continuous gap width adjustment
-Braking motor with safety switch
-Final fineness approx. 2 to 5mm
-Easy cleaning of grinding chamber
-Supply requirements 400 V 3-ph, 50 Hz

Type BB 200
Max. fineness 2 mm
Material feed size 90.0 mm
Max. Feed quantity/ Flow rate 5000 ml
Max. throughput kg/h
Material breaking jaws Manganese steel
Width 450 mm
Depth 900 mm
Height 1160 mm
Net weight 300 kg
Ult. fineness 5 mm
Protection class IP 54
Rated capacity 1.500000 kW
Type of auxiliary energy
Plug type
Dimensions (W x D x H) 450 x 900 x 1160 mm
Feed size up to 90 mm
Weight 300 kg
