spektrofotometr UviLine SI
Spectrophotometer UviLine SI, Type SZ 2150 , Description Sipper controlled from UviLine
Výrobce
Zařazeno v kategoriích
Spektrofotometry
Popis

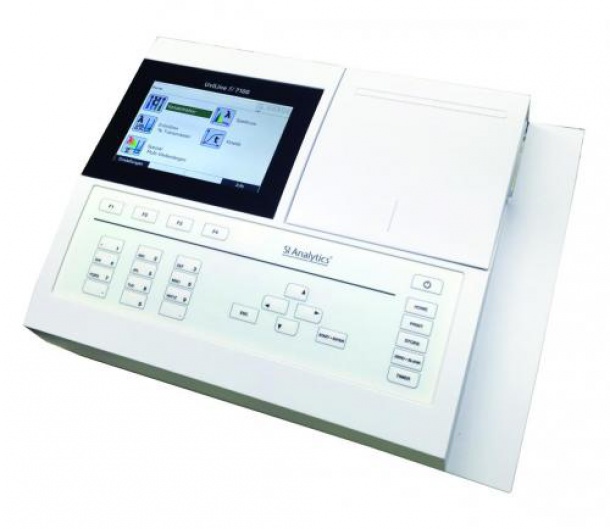

Spectrophotometer UviLine SI
UviLine SI 5000 and UviLine SI 6000 for measurements at VIS-range from 320 nm to 1100 nm.
UviLine SI 7000 and UviLine SI 7100 for measurements at UV-VIS-range from 190 nm to 1100 nm. Models UviLine SI 5000, 6000 and 7000 use the proven single beam technology. The UviLine 6100 and 7100 models use a reference beam technology for maximum accuracy and low drift. UviLine SI 5000 with an optical resolution of 6 nm, all other photometers with an optical resolution of 4 nm.
Wide performance range
-measurements of absorbance, transmission and concentration up to 8 standards
-multi-wavelength e.g. for measurements of DNA/RNA or the determination of protein according to Warburg-Christian
-spectra scan with online graphic and various evaluation functions
-kinetics (short and long term measurements)
Easy accessible accessories are available on request:
Quick-lock system requires no tools.
-10mm cell holder (standard)
-10mm cell holder (water thermostatable)
-10mm cell holder (peltier thermostatable from 15 - 40 °C)
-cell holder from 10mm up to 100mm
-sipper (incl. flow trough cell)
-automatic 5+1 cell changer
Peltier cell holder, sipper and 5+1 cell changer can be fully controlled from the software.
Modern Interfaces
-USB A interface for the connection of USB-sticks, keyboard or printer. More than 1 device can be conncected at the same time using a USB-hub.
-USB-(B)-interface for the PC connection.
Specifications:
Technique: depending on version or with reference beam technology
Wavelength accuracy :
Wavelength repeatability: ± 1 nm
< ± 0.5 nm
±3,3 (single beam), ±3,3 (reference beam)
Photometric accuracy: ±0.003 Abs at 0.5 Abs, ±0.005 at 1.0 Abs, 0.01 Abs at 2.0 Abs
Stray Light: < 0.1% at 340 and 400 nm
Display: Back graphic display with 320 x 240 signs
Data storage: 1000 values; for spectra and cinetics appr. 4 MB
Interfaces: 1 x USB master 1 x USB-slave, 1 x Ethernet RJ45
Power supply:
Temperature range: 110 - 220 V, 50/60 Hz
Operating temp. +10 to +35 °C, Storage: -25 to +65°C
Dimensions (W x H x D) :
Weight: 404 x 197 x 314 mm
4 kg without power supply
Type SZ 2150
Description Sipper controlled from UviLine
UviLine SI 5000 and UviLine SI 6000 for measurements at VIS-range from 320 nm to 1100 nm.
UviLine SI 7000 and UviLine SI 7100 for measurements at UV-VIS-range from 190 nm to 1100 nm. Models UviLine SI 5000, 6000 and 7000 use the proven single beam technology. The UviLine 6100 and 7100 models use a reference beam technology for maximum accuracy and low drift. UviLine SI 5000 with an optical resolution of 6 nm, all other photometers with an optical resolution of 4 nm.
Wide performance range
-measurements of absorbance, transmission and concentration up to 8 standards
-multi-wavelength e.g. for measurements of DNA/RNA or the determination of protein according to Warburg-Christian
-spectra scan with online graphic and various evaluation functions
-kinetics (short and long term measurements)
Easy accessible accessories are available on request:
Quick-lock system requires no tools.
-10mm cell holder (standard)
-10mm cell holder (water thermostatable)
-10mm cell holder (peltier thermostatable from 15 - 40 °C)
-cell holder from 10mm up to 100mm
-sipper (incl. flow trough cell)
-automatic 5+1 cell changer
Peltier cell holder, sipper and 5+1 cell changer can be fully controlled from the software.
Modern Interfaces
-USB A interface for the connection of USB-sticks, keyboard or printer. More than 1 device can be conncected at the same time using a USB-hub.
-USB-(B)-interface for the PC connection.
Specifications:
Technique: depending on version or with reference beam technology
Wavelength accuracy :
Wavelength repeatability: ± 1 nm
< ± 0.5 nm
±3,3 (single beam), ±3,3 (reference beam)
Photometric accuracy: ±0.003 Abs at 0.5 Abs, ±0.005 at 1.0 Abs, 0.01 Abs at 2.0 Abs
Stray Light: < 0.1% at 340 and 400 nm
Display: Back graphic display with 320 x 240 signs
Data storage: 1000 values; for spectra and cinetics appr. 4 MB
Interfaces: 1 x USB master 1 x USB-slave, 1 x Ethernet RJ45
Power supply:
Temperature range: 110 - 220 V, 50/60 Hz
Operating temp. +10 to +35 °C, Storage: -25 to +65°C
Dimensions (W x H x D) :
Weight: 404 x 197 x 314 mm
4 kg without power supply
Type SZ 2150
Description Sipper controlled from UviLine
Varianty produktu
Pro zobrazení cen na míru se přihlašte do klientské sekce.
Kód produktu
Kód produktu
Kód BDL 9775453
Kód BDL 6287550
Type UviLine SI 7100 , Description Reference beam photometer, 4 nm, measuring range 190 - 1100 nm
Kód BDL 6285582
Type UviLine SI 7000 , Description Single beam photometer, 4 nm, measuring range 190 - 1100 nm
Kód BDL 9775452
Type SZ 2130 , Description Cell holder Single, 10mm, (included in delivery of all UviLines)
Kód BDL 6287549
Type UviLine SI 6100 , Description Reference beam photometer, 4 nm, measuring range 320 - 1100 nm
Kód BDL 6251233
Type SZ 2100 , Description 5+1 cell changer, controlled from UviLine
Kód BDL 7628259
Type SZ 2140 , Description Cell holder Single 10mm, water thermostatable
Kód BDL 6285583
Type UviLine SI 5000 , Description Single beam photometer, 6 nm, measuring range 320 - 1100 nm
Kód BDL 6242634
Type SZ 2150 , Description Sipper controlled from UviLine
