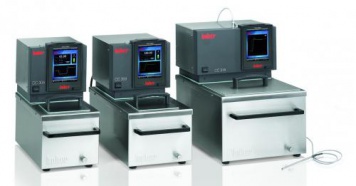

Heating bath circulators
Heating bath circulators are suitable for temperatures up to 200 °C or 300 °C depending on model. The Compatible Control models have a continuously variable pressure and suction pump. The pump pressure can be controlled with an optional pressure sensor, and so can protect your valuable glass-ware from breakage. The machines are preferred and used for temperature control of externally connected applications. Additionally there is the ability to control the temperature of objects placed directly in the open bath.
Temperature control range
CC-205B / KISS-205B:
CC-304B / CC-308B / CC-315B:
(20) 45 ... 200°C
28 ... 300°C
Safety class: FL, III
Stability to DIN 12876
CC-205B / CC-304B / CC-308B / CC-315B:
KISS-205B:
0.02K
0.05K

Type KISS-205B
Bath capacity 5.0 L
Suction pump cap. 10,5/0,17 L/min bar
Pressure pump max. 14/0,25 L/min bar
Dimensions (W x D x H) 178 x 337 x 355 mm
Heating capacity 2,0 kW
