chladící cirkulátory
Cooling circulators, Type KISS-K15 , Bath capacity 15 L, Pump max. 14/0,25 l/min / bar, Dimensions (W x D x H) 350 x 560 x 430 mm, Bath opening 290 x 152 mm, Cooling capacity kW at 0/-10/-20°C 0,2/0,12/0,05 , Working Temp. range -20 ... +200 °C
Výrobce
Zařazeno v kategoriích
Termostaty s chlazením
Popis

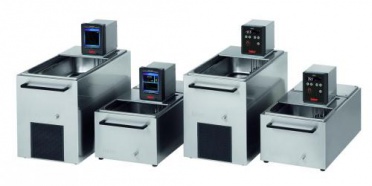

Cooling circulators
Combinations of immersion circulators and insulated refrigeration baths are low-cost solutions for direct thermoregulation within the temperature range -20/-30°C to +200°C. The refrigeration baths operate with natural refrigerants. A pump adapter (optional) can be fitted for thermoregulation of externally closed applications. Models with the Pilot ONE controller have a variable speed pressure/suction pump and are therefore suitable for external open thermoregulation applications. The temperature stability is 0.02K for the Compatible Control models and 0.05K for the KISS models.
Type KISS-K15
Bath capacity 15 L
Pump max. 14/0,25 l/min / bar
Dimensions (W x D x H) 350 x 560 x 430 mm
Bath opening 290 x 152 mm
Cooling capacity kW at 0/-10/-20°C 0,2/0,12/0,05
Working Temp. range -20 ... +200 °C
Combinations of immersion circulators and insulated refrigeration baths are low-cost solutions for direct thermoregulation within the temperature range -20/-30°C to +200°C. The refrigeration baths operate with natural refrigerants. A pump adapter (optional) can be fitted for thermoregulation of externally closed applications. Models with the Pilot ONE controller have a variable speed pressure/suction pump and are therefore suitable for external open thermoregulation applications. The temperature stability is 0.02K for the Compatible Control models and 0.05K for the KISS models.
Type KISS-K15
Bath capacity 15 L
Pump max. 14/0,25 l/min / bar
Dimensions (W x D x H) 350 x 560 x 430 mm
Bath opening 290 x 152 mm
Cooling capacity kW at 0/-10/-20°C 0,2/0,12/0,05
Working Temp. range -20 ... +200 °C
Varianty produktu
Pro zobrazení cen na míru se přihlašte do klientské sekce.
Kód produktu
Kód produktu
Kód BDL 9859228 Kód výrobce 2010.0002.01
Kód BDL 6272331 Kód výrobce
2012.0015.98
Type KISS-K25 , Bath capacity 25 L, Pump max. 14/0,25 l/min / bar, Dimensions (W x D x H) 350 x 555 x 615 mm, Bath opening 290 x 329 mm, Cooling capacity kW at 0/-10/-20°C 0,35/0,27/0,16 , Working
2012.0015.98
Kód BDL 9859230 Kód výrobce
2012.0002.01
Type CC-K25 , Bath capacity 25 L, Pump max. 27 / 0,7 l/min / bar, Dimensions (W x D x H) 350 x 555 x 615 mm, Bath opening 290 x 329 mm, Cooling capacity kW at 0/-10/-20°C 0,35/0,27/0,16 , Working T
2012.0002.01
Kód BDL 9859227 Kód výrobce
2009.0002.01
Type CC-K12 , Bath capacity 12 L, Pump max. 27 / 0,7 l/min / bar, Dimensions (W x D x H) 350 x 560 x 430 mm, Bath opening 290 x 152 mm, Cooling capacity kW at 0/-10/-20°C 0,2/0,12/0,05 , Working Te
2009.0002.01
Kód BDL 6272330 Kód výrobce
2011.0013.98
Type KISS-K20 , Bath capacity 20 L, Pump max. 14/0,25 l/min / bar, Dimensions (W x D x H) 350 x 555 x 615 mm, Bath opening 290 x 329 mm, Cooling capacity kW at 0/-10/-20°C 0,35/0,27/0,16 , Working
2011.0013.98
Kód BDL 9859229 Kód výrobce
2011.0002.01
Type CC-K20 , Bath capacity 20 L, Pump max. 27 / 0,7 l/min / bar, Dimensions (W x D x H) 350 x 555 x 615 mm, Bath opening 290 x 329 mm, Cooling capacity kW at 0/-10/-20°C 0,35/0,27/0,16 , Working T
2011.0002.01
Kód BDL 6287658 Kód výrobce
2009.0020.98
Type KISS-K12 , Bath capacity 12 L, Pump max. 14/0,25 l/min / bar, Dimensions (W x D x H) 350 x 560 x 430 mm, Bath opening 290 x 152 mm, Cooling capacity kW at 0/-10/-20°C 0,2/0,12/0,05 , Working T
2009.0020.98
Kód BDL 6272329 Kód výrobce
2010.0017.98
Type KISS-K15 , Bath capacity 15 L, Pump max. 14/0,25 l/min / bar, Dimensions (W x D x H) 350 x 560 x 430 mm, Bath opening 290 x 152 mm, Cooling capacity kW at 0/-10/-20°C 0,2/0,12/0,05 , Working T
2010.0017.98
