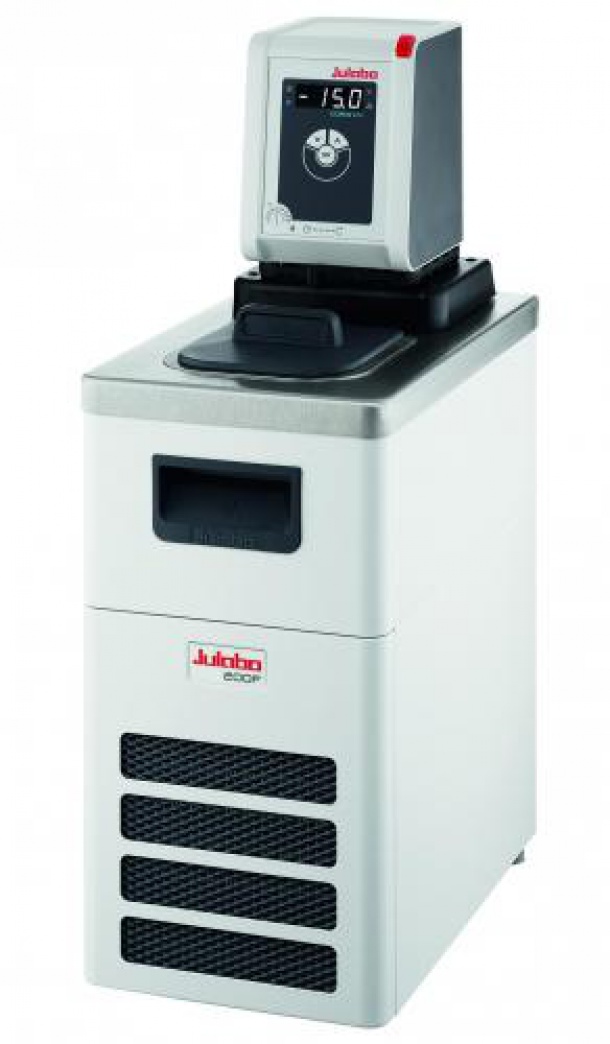

Refrigerated circulator baths, CORIOä CD
CORIOä CD Heating Circulators for internal and external temperature applications with stainless steel baths for working temperatures from -40 °C to +150 °C.
CORIOä Heating Circulators feature professional technology for demanding applications. These units facilitate internal temperature control in the bath tank or control of externally connected applications.
-For internal and external applications
-Bright, white, easy to read display
-Very quiet
-Pump change-over between internal and external circulation
-USB connection
-High-quality bath tanks made of stainless steel with bath lid and drain tap
-Integrated cooling coil for counter-cooling
Specifications
Temperature stability: ± 0.03 °C
Heating capacity: 2 kW
Flow rate: 15 l/min
Pressure: 0.35 bar

Type CORIO™ CD-200F
Capacity 3 - 4 L
Dimensions (W x D x H) 230 x 390 x 650 mm
Bath opening 130 x 150 mm
Bath tank depth 150 mm
Working Temp. range -20 - 150 °C
Cooling capacity kW at 20/0/-20°C 0,22 / 0,17 / 0,06
