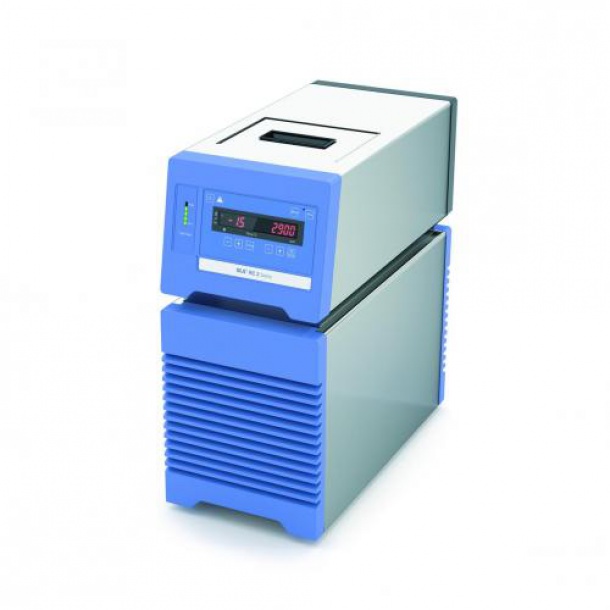

Circulator baths RC 2 basic / RC 2 control
The RC recirculating chillers are designed to cool external equipment quickly and efficiently. The chillers offer short cooling times at a temperature stability of ±0.05K for the control versions (±0.1K for the basic versions) and a working temperature range of -20°C to room temperature. The RC 2 recirculating chillers are ideal for cooling external equipment such as laboratory reactors, calorimeters, incubating shakers or rotary evaporators. The RC 2 control with wireless controller (WiCo) makes the device easy to operate remotely, enabling users to save space through the option of placing the chiller in a hard-to-reach area of the laboratory. Critical temperature control processes can be monitored and recorded, guaranteeing complete documentation of all measurement processes.
RC 2 control additionally with connection for external PT100 sensor (included in delivery).
Specifications
Safety class: I (FL)
Cooling power (at 20 °C): 400W
Working temperature range: -20°C to RT
Temperature display RC 2 basic / RC 2 control: LED / TFT
Temperature consistency in accordance with DIN 12876 RC 2 basic / RC 2 control:
±0.1K / ±0.05K
Filling volume: 1.4 to 4 l
Pump power pressure side / suction side: 0.3bar / 0.2bar
Max. flow rate: 18l/min
Dimensions (W x H x D): 220 x 475 x 525mm
Permissible ambient temperature: 5 to 32°C
Permissible relative humidity: 80%
Protection class according to DIN EN 60529: IP 21
Interface: RS232, USB

Type RC 2 basic
