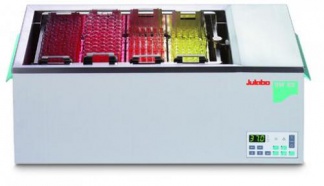

Shaking water baths, SW series
For simultaneous heating and shaking of samples, e.g. incubations, hybridizations etc. Reciprocal motion.
-microprocessor technology with PID temperature control
-bright Multi-Display (LED) indicates five different temperature values and shaking speed
-splash-proof mains switch, built into plastic membrane keypad
-easy-to-use controls
-timer for selecting desired operating period
-RS232 interface provided
-shaking frequency 20 to 200 strokes/min., with 15mm stroke
-removable shaking carriage
-model SW23 has an internal circulation pump giving enhanced temperature stability

Bath lid not included.

Type SW22
Capacity of the bath 20 litres
Internal dimensions (W x D x H) 500 x 300 x 180 mm
External dimensions (W x D x H) 700 x 350 x 260 mm
Min. operating temperature RT + °C
Max. operating temperature 99 °C
Temperature stability 0.20 ± °C
Min. speed 20 rpm
Max. speed 200 rpm
Shaking stroke / Shaking orbit 15 mm
Bath width 500 mm
Bath tank depth 300 mm
Bath height 180 mm
Width 700 mm
Depth 350 mm
Height 260 mm
Net weight 19.400000 kg
Rated capacity 2 kW
Programmable calibration / temperature deviation
3 programmable preset temperatures
Programmable timer
Programmable upper limit
Hingecovering dome +
Overtemperature protection +
Warning sound
