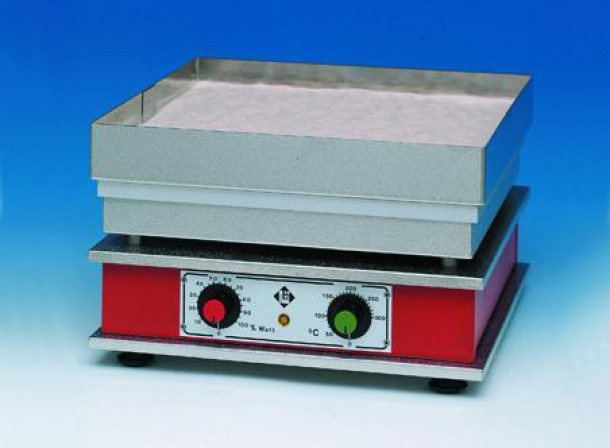

Sand Baths with Performance Control and Thermostatic Controller
For continuous operation. Electrical sand baths with thermostatic temperature control and separate power controller for performance adjustment to the heating requirements. Anodised aluminium alloy hotplate. Excellent uniform temperature distribution over the entire heating surface. Asbestos free. The sand bath frame is tightly screwed onto the hotplate so that the sand is in direct contact with the hotplate. Useful depth 50mm. Stainless steel controller housing, with painted central section. Height-adjustable feet. Connection cable approximately 1.7m. With earthed plug for 230V supplies up to 3300W. A 400V 3-phase model is also available.

Type ST 93-400
Capacity of the bath litres
Min. operating temperature 100 RT + °C
Max. operating temperature 370 °C
Hotplate 440 x 590 mm
Dimensions (W x D x H) 442 x 592 x 220 mm
Net weight 28 kg
Width 442 mm
Depth 592 mm
Height 220 mm
Bath diam. mm
Min. speed rpm
Max. speed rpm
Bath width 440 mm
Bath tank depth 590 mm
Diam. mm
Bath height 50 mm
Rated power 4000 W
Type of auxiliary energy 3x400V
Plug type EU
