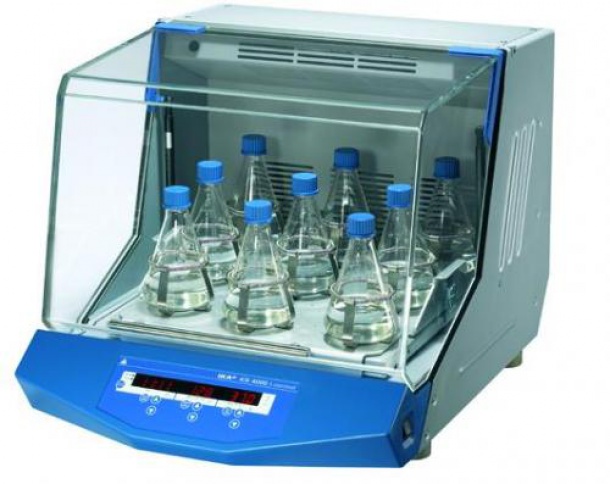

Incubator Shaker KS4000i control
Innovative incubator shaker design allowing unattended operation in a temperature-controlled environment.
-large LED display for speed and time settings
-controls with antimicrobial coating for reduction of bacteria
-integrated PID temperature control (two Pt1000 temperature sensors can be used)
-socket in the work area for connection of an additional temperature sensor e.g. PT1000.60 (included in delivery)
-electronic temperature and speed control
-electronic timer switch: 0 to 999h (set by the minute or by the hour)
-KS 4000 ic with built-in cooler for connection to an external cooling unit e.g. RC 2 basic
-unit switches off automatically if disturbed
-unit stops automatically when hood is lifted
-collecting tray for spillages with draining tube at rear of unit
-all functions can be controlled and documented using labworldsoft® software
-attachments not included - Please order accessories as required
Specifications
Shaking movement:
Orbit: orbital
20mm
Max. shaker weight (with attachment): 20kg
Motor rating input / output:
Power consumption:
Operating time: 82 / 24W
1120W (at 230V)
continuous
Speed range:
Timer switch (select minutes/hours): 10 to 500rpm
0 to 999 h/continuous
Heater power: 1000W
Temperature range: RT +5°C to 80°C
Temperature stability (200 ml H2O at target T = 37 °C, RT 25 °C): 0.1K
Recirculating cooler: additional cooling function for KS 4000 ic
Dimensions (W x D x H):
Space required (W x D): 580 x 750 x 525mm
600 x 600mm
Weight: 55kg
Permissible ambient temperature: 15 to 32°C
Protection class acc. to DIN EN 60529:
Interface: IP30
RS232
Supply requirements: 230V 50/60Hz
Tested to DIN EN IEC 61010-1.

Type KS 4000 i control
Nom. capacity 90 L
Load capacity 20 kg
Min. speed 10 rpm
Max. speed 500 rpm
Amplitude 20 mm
Min. operating temperature °C 20
Max. operating temperature 20 °C
Temp. stability 0.10 ± °C
Depth of the interior mm
Depth of the interior mm
Width 580 mm
Depth 750 mm
Height 525 mm
Net weight 55 kg
Programmable
Timer is available +
Width of the moving table 430 mm
Depth of the moving table 430 mm
Width of the interior mm
Ventilation present
Power consumption 1120 W
Type of auxiliary energy 230V AC
Internal dimensions (W x D x H) mm
External dimensions (W x D x H) mm
Plug type UK
