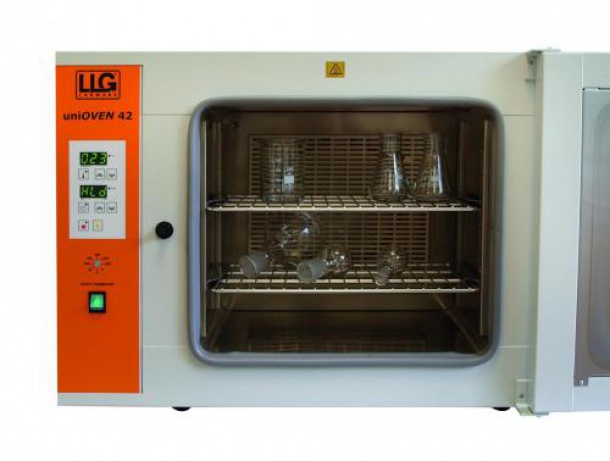

Universal drying oven LLG-uniOVEN 42 and LLG-uniOVEN 110
Microprocessor controlled universal drying oven with forced convection including two shelves. Each shelf of the uniOVEN 42 and uniOVEN 110 has a load capacity of 20 kg, the total load capacity of each unit is 50 kg. The maximum number of shelves is 7 for uniOVEN 42 and 10 for uniOVEN 110 with a distance of 40 mm between shelves.

-Quick and intuitive operation
-Microprocessor control with integrated auto-diagnostic system
-Forced convection with fan
-Digital display for time and temperature
-Timer: 1 minute to 99.9 h and continuous
-Delayed start timer: 1 minute to 99.9 h
-Outlet for vapour exhaustion
-Acoustical and visible information for end of program
-Acoustical and optical alarm at temperature differences
-Interior made of stainless steel
-Adjustable over temperature protection at 300 °C

Scope of delivery: LLG-uniOVEN incl. 2 shelves
Specifications LLG-uniOVEN 42 // LLG-uniOVEN 110
Internal volume: 42 l // 110 l
Temperature range: 50 ... 250 °C
Temperature accuracy:
Temperature uniformity: ±1 °C (at 70 °C)
±2 °C (at 70 °C)
Permissible ambient temperature: 5 ... 40 °C
Permissible relative moisture: 80 %, not condensing
Dimensions (W x D x H): 420 x 280 x 360 // 500 x 445 x 500
Weight: 39 kg // 66 kg
Power supply: 230 V, 50/60 Hz
Warranty: 3 years

Type LLG-uniOVEN 42
Nom. capacity 42 L
Max. shelves 7
Included shelves 2
Natural convection No
Ventilation present Yes
Internal dimensions (W x D x H) 420 x 280 x 360 mm
External dimensions (W x D x H) 705 x 505 x 540 mm
Rated capacity 0.850000 kW
Plug type EU
Min. operating temperature 7 RT + °C
Max. operating temperature 250 °C
Width of the interior 420 mm
Depth of the interior 280 mm
Depth of the interior 360 mm
Width 705 mm
Depth 505 mm
Height 540 mm
Net weight 39 kg
Programmable
Timer is available Yes
Type of auxiliary energy 230 V, 50/60 Hz

Type/Controller
Shelves 2
Tube length mm
Tube diam. mm
