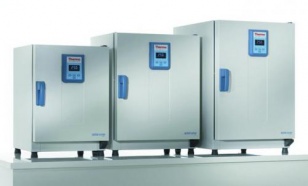

Herathermä General Protocol Ovens
The series provide bench-top models with 60, 100 or 180 l as well as floor models with 400 or 750 l chamber volume and 3 different fittings, each optionally with gravity or mechanical convection.
-Very high energy efficiency, environmentally friendly materials (reduced use of formaldehyde), reduced heat emission
-Programmable timer
-Small footprint
-Flexible shelf system doubles the number of shelves and therefore the footprint
-Very good spatial and temporal temperature stability
-Automatic visual and acoustic over-temperature alarm
-Very low temperatures at outer wall
-Easy to read vacuum fluorescent display
-Intuitive user interface for setting temperature
-Easy cleaning due to edgeless fabrication
Herathermä General Protocol:
Perfect for routine daily work from 10 to 250 °C. Chambers made from corrosion-resistant st. steel with rounded corners. Timer, mechanical exhaust vent as well as 2 shelves are incl. as standard.
Herathermä Advanced Protocol:
For a greater flexibility and accuracy of temperature values. With V2A st. steel interior, works up to 330 °C at highly stable temperatures. Digital timer for daily or weekly On / OFF cycles. Up to 10 cycles can be stored and combined as ramps. Fan speed and air valve can be integrated into ramp programming. Selectable quick start function allows for extremely fast heating.
Herathermä Advanced Protocol Security:
Additional to equipment of the Advanced Protocol series: under-temperature alarm for improved sample protection. With door lock and door alarm to prevent disruption and allow for safe cultures for a long time. Optional auto-dry function deactivates oven when the samples are dry. The V2A inner chamber can be supplemented by a st. steel outer housing for pharmaceutical and clinical applications.
Specifications
Power supply: 230 V, 60 Hz
Temperature range: 10 to 250 °C (General Protocol / Advanced Protocol floor models)
10 to 330 °C (Advanced Protocol benchtop models / Advanced Protocol Security)
Thermo Scientificä Herathermä General Protocol ovens are perfect for routine daily work, providing the ideal heating and drying solution for your applications.
-Low energy consumption
-Built in timer
-Excellent footprint/volume ratio
-Tabletop models in 3 sizes (60L, 100L, 180L), floor models in 2 sizes (400L, 750L)
-Inner chambers made from corrosion-resistant stainless steel with rounded corners for easy cleaning
-Large, easy to view vacuum fluorescent display
-Simple, microprocessor-based touch button controls
-Doors can be opened over 180° making these units easy to access
-Automatic overtemperature alarm system to protect samples
-Gravity convection units (Type designation OGS) are designed to protect delicate samples while offering temperature uniformity of +/- 4 °C with temperature stability of +/- 0.4 °C at 150 °C
-Mechanical convection models (Type designation OM) provide a temperature uniformity of +/-3.3 °C with temperature stability of +/-0.3 °C at 150 °C
-The exhaust vent can be used as an access port for an external temperature sensor
-Lockable casters for easy mobility and stability (floor models only)
-All Herathermä ovens come standard with a RS232 data interface

The number of shelves included in the scope of delivery is listed in the table.

Type OGS60
Nom. capacity 65 L
Max. shelves 13
Included shelves 2
Natural convection Yes
Ventilation present No
Internal dimensions (W x D x H) 328 x 415 x 480 mm
External dimensions (W x D x H) 530 x 565 x 720 mm
Rated capacity 1.800000 kW
Min. operating temperature 10 RT + °C
Max. operating temperature 250 °C
Width of the interior 328 mm
Depth of the interior 415 mm
Depth of the interior 480 mm
Width 530 mm
Depth 565 mm
Height 720 mm
Net weight 42 kg
Plug type EU
Type of auxiliary energy 230 V, 50/60 Hz

Type/Controller
Programmable
Temp. range RT + 10¼250 °C
Timer is available Yes
Tube diam. mm
