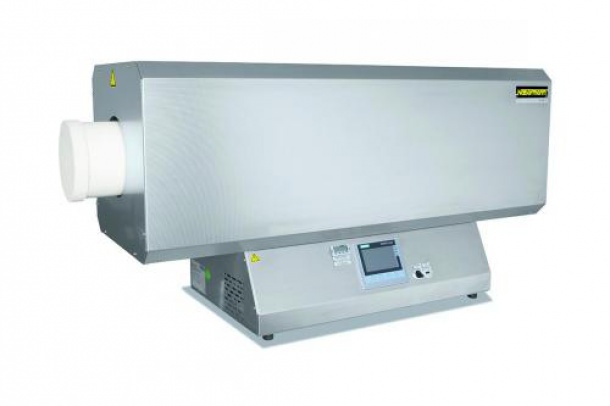

Tube Furnaces
These compact tube furnaces with integrated control systems can be used universally for many processes. Equipped with a standard working tube of C 530 ceramic and two fiber plugs, these tube furnaces have an unbeatable price/performance ratio.
-Tmax 1200 °C or 1300 °C
-Single-zoned design as standard
-Dual shell housing made of sheets of textured stainless steel
-Outer tube diameter of 50 to 170 mm, heated length from 250 to 1000 mm
-Working tube of C 530 ceramic including two fiber plugs as standard equipment
-Tmax 1200 °C: Type N thermocouple
-Tmax 1300 °C: Type S thermocouple
-Solid state relays provide for lownoise operation
-Possible controller variants are the programmable B 410, C 450 and P480 (three-zone) with adjustable ramps and hold times
-Standard power supply 400 V 3/N/PE 50/60 Hz

Option:
-Over-temperature limiter with adjustable cutout temperature for thermal protection class 2 in accordance with EN 60519-2 as temperature limiter to protect the furnace and load
-Charge control with temperature measurement in the working tube and in the furnace chamber outside the tube
-Three-zoned design (heated length from 500 mm)
-Working tubes
-Gas supply systems for protective gas or vacuum operation
-Process control and documentation with VCD software package

Type/Controller R 50/500/12/P480
Tube diam. 50 mm
Tube length 700 mm
Max. temp. 1200 °C
Dimensions (W x D x H) 670 x 340 x 508 mm
Power 2,3 W
