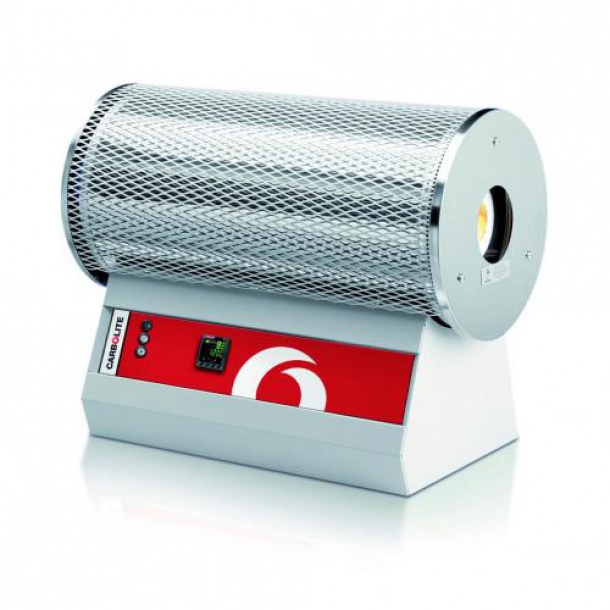

Tube furnaces MTF / CTF / TZF

-maximum operating temperatures of 900°C, 1000°C and 1200°C
-11 different standard models (MTF and CTF) for choice
-MTF models: tube diameters range from 15 to 38 mm and heated lengths from 130 to 900 mm
-CTF models: tube diameters of 65, 75 and 100 mm, heated lengths of 550, 700 and 900mm
-TZF models: tube diameters range from 38 to 100mm and heated lengths from 400 to 900mm
-integrated ceramic worktube
-can be adapted to allow a non-oxidising atmosphere by fitting an additional work tube and end seals
-thermocouple in separate sheath between worktube and heating element
-mesh guard for low temperatures at the outer case
-these furnaces can optionally be mounted vertically with a separate control box
-controls located in control box (below furnace body)
-digital PID-Controller E301

Type MTF 10/15/130
Max. temp. 1000 °C
Heated zone 130 mm
Tube length 150 mm
Tube diam. 15.0 mm
Power 400 W
External dimensions (W x D x H) 150 x 175 x 265 mm
