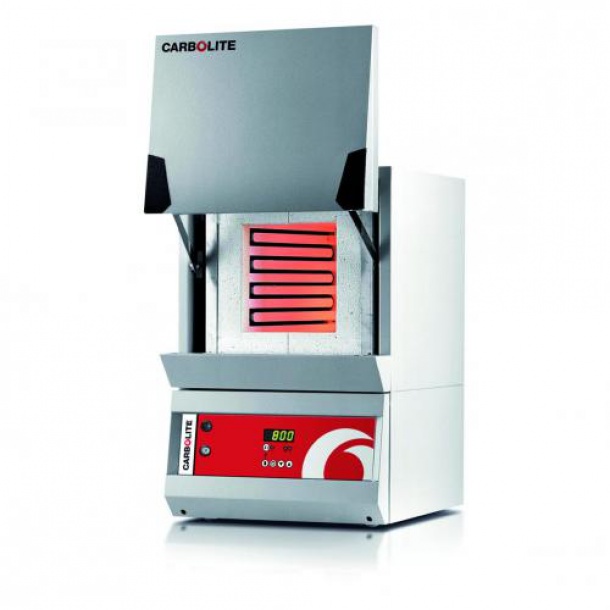

Chamber furnaces CWF

-maximum operating temperatures of 1100°C and 1200°C
-chamber capacities of 5L, 13L or 23L
-powerful, free radiating, coiled wire elements on both sides of the chamber ensure good thermal uniformity
-hard wearing, refractory insulation inside the chamber and around the chamber entrance provides good resistance to abrasion
-vertical, counter-balanced door keeps hot door insulation away from operator
-positive break, door safety switch isolates chamber from power supply, when the door is opened
-double skinned construction allows convection air flow to cool the outer case
-wide range of applications (from ashing to hardening)
-digital PID-Controller E301

Type CWF 11/13
Max. temp. 1100 °C
Power 3100 W
Capacity 13 L
Internal dimensions (W x D x H) 200 x 325 x 200 mm
External dimensions (W x D x H) 435 x 610 x 655 mm
