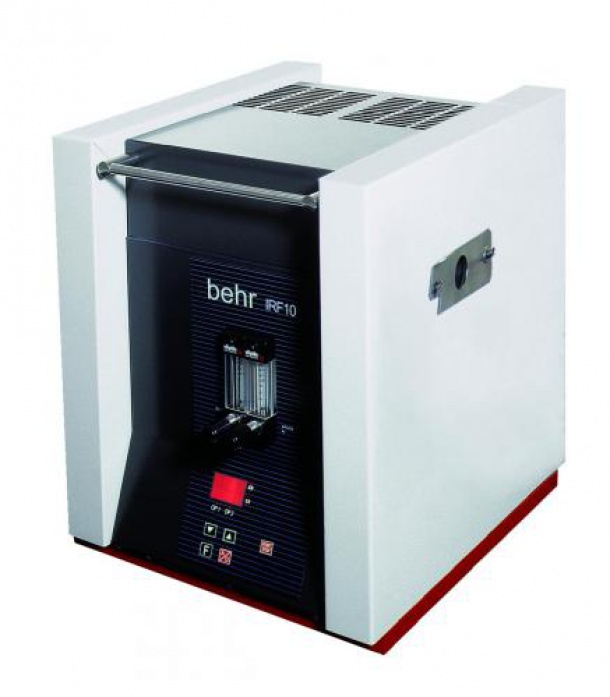

Infra-red furnace
The behr IRF 10 programmable infrared furnace 13 the optimum solution for many tasks in the laboratory, e.g.:
-Temperature range up to 1150 °C
-Extremely short heating period (e.g. from room temperature to 1000 °C in 10 sec)
-Up to 5 ramps and 5 heating rates can be programmed optionally. The program controls the individual analysis phases exactly and in a reproducible manner, in the meantime the sample boat remains in the same place
-Cooling with heat pipes - no coolant required
-Quick cooling down with the heat pipe technique and opening of the kiln
-Combustion chamber which can be viewed by the user: The user can push back the upper cylindrical shell (furnace lid) on rollers
-The use of silica combustion tubes with different dimensions allows adaptation to different applications, sample materials and sample quantities
-Two fl ow meters to connect 2 type of gas, e.g. oxygen and an inert gas
-RS232 serial interface
-Control via PC possible
Specifications
Maximum furnace temperature along focal line: 1150°C
Tube diameter, external.: 18 to 28mm
IR furnace length (heated length): 200mm
Maximum radiation strength: 1.5kW
Dimensions (W x H x D): 360mm x 440mm x 420mm
Supply: 230V 50Hz

Type Infrared furnace*
For silica tube 18mm to 20mm
