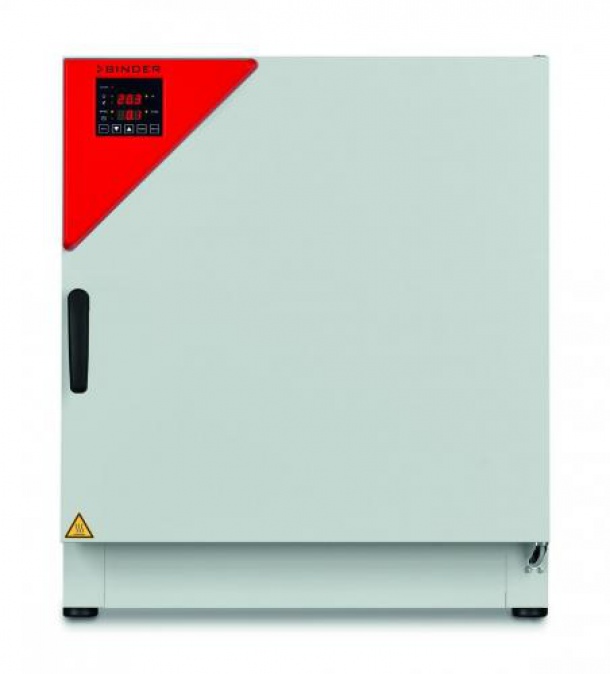

CO2 incubators C 170
The C series CO2 incubators have been designed for standard applications in cell culture. They are contamination-free due to hot air sterilisation at 180 °C and reliably pH-stable thanks to the drift-free infrared CO2 measuring system.

-Humidification system with condensation protection
-CO2 sensor with infrared technology
-Tight-closing door made of safety glass (ESG)
-Seamless, deep-drawn inner stainless steel chamber
-Max. 8 shelves
-Units are stackable with stacking adapter
-Error diagnosis system with optical and acoustic alarm
-Stack compatible with CB 170 incubators

Scope of supply: CO2 incubator, 3 perforated stainless steel shelves
Specifications
Capacity: 170 l
Temperature range: RT +6 ... 50 °C
CO2 range: 0 ... 20 %
Humidity range: 90 ... 95 % RH
Inner dimensions (W x D x H): 560 x 505 x 600 mm
Outer dimensions (W x D x H): 680 x 715 x 870 mm
Weight: 90 kg

Type C 170, door hinged on the right
Nom. capacity 170 L
Natural convection yes
Ventilation present no
Min. operating temperature °C 6
Max. operating temperature 50 °C
Max. shelves 8
Included shelves 3
Internal dimensions (W x D x H) 560 x 505 x 600 mm
External dimensions (W x D x H) 680 x 715 x 870 mm
Width of the interior 560 mm
Depth of the interior 505 mm
Depth of the interior 600 mm
Width 680 mm
Depth 715 mm
Height 870 mm
Net weight 90 kg
Rated capacity 1.300000 kW
Shelves
Programmable yes
Timer is available yes
Type of sterilization
Type of auxiliary energy 230 V, 50/60 Hz
Power consumption W
Shelf support ribs/shelves
