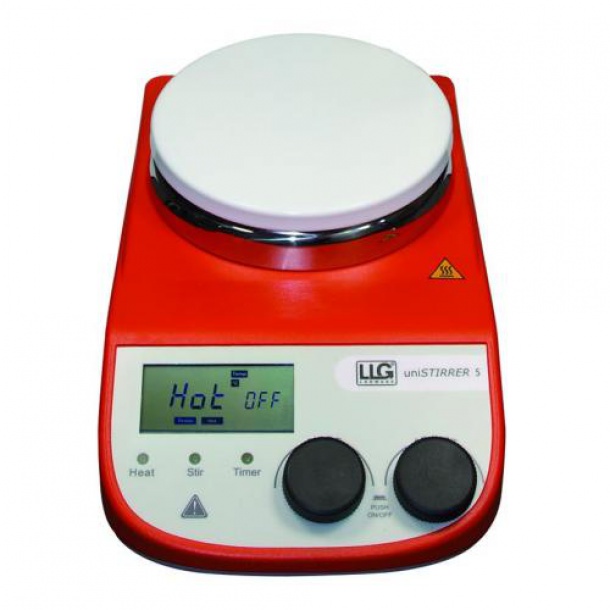

Magnetic stirrer with heating LLG-uniSTIRRER 5, complete package
Universal magnetic stirrer with an outstanding price-performance ratio. Safety features include a ''hot'' warning display and a stirring function that continues to run until the plate temperature is below 50 °C, even when the device is switched off. A digital timer enables unattended operation and can be set from 1 min to 99 h 59 min. When the set time has elapsed, the unit stops automatically. An integrated control function offers precise control of the heated fluid temperature via a remote PT1000 temperature probe. The device is equipped with a Ø 135 mm stainless steel plate with glass ceramic, suitable for the LLG-Universal reaction block systems.

-Timer (1 min to 99 h 59 min)
-Latest generation magnetic stirrer/hotplate
-Maintenance-free, brushless DC motor
-Stainless steel plate with glass ceramics coating
-Digital control and backlit display
-Stirrer and display can be controlled remotely via an RS232 interface
-Hot surface indicator
-Stainless steel plate with glass ceramic
-Sturdy metal housing
-Powerful stirring
-Connection for PT1000, integrated control function

Scope of delivery: Magnetic stirrer with PT1000 probe, rod and holder
Specifications
Max. stirring quantity (H2O): 20 l
Speed:
Accuracy:
Magnetic bar: 100 ... 1500 min-1
± 1 min-1
max. 80 mm
Display: LCD
Heating plate: Ø 135 mm
Permissible ambient temperature:
Temperature range: 5 ... 40 °C
RT ... 340 °C
Setting accuracy:
Control accuracy:
Heat output: ±0.1 °C
±0.2 °C
550 W
Safety temperature: 360 °C
Dimensions (W x D x H): 160 x 285 x 85 mm
Weight: 2.8 kg
Power supply: 200 ... 240 V, 50/60 Hz
IP code: IP 42
Warranty: 3 years

Type LLG-uniSTIRRER 5
Stirring capacity 20 l
Min. speed 100 rpm
Max. speed 1500 rpm
Stirring positions 1
Width working area 135 mm
Depth working area 135 mm
Material stirring surface Stainless steel with ceramic coating
Min. permitted ambient temperature 5 °C
Max. permitted ambient temperature 40 °C
Max. relative humidity rate 80 %
Colour housing orange
Anzeigeart digital
Protection class IP42
Dimensions (W x D x H) 280 x 160 x 85 mm
Width 280 mm
Depth 160 mm
Height 85 mm
Stirring centre distances mm
Material Stainless steel
Plug type EU
Type of auxiliary energy 200 - 240 V, 50/60 Hz
Motor rating input 18 W
Weight 2.800000 kg
Motor rating output 10 W
Max. operating temperature 340 °C
Heating power 550 W
Power consumption W
