vícepozicové magnetické míchačky MIXdrive s externím ovládáním pro použití ve vodních lázních nebo v
Magnetic stirring system MIXdrive 1 external control -Please order control unit separately-
Výrobce
Zařazeno v kategoriích
Míchačky bez ohřevu
Popis

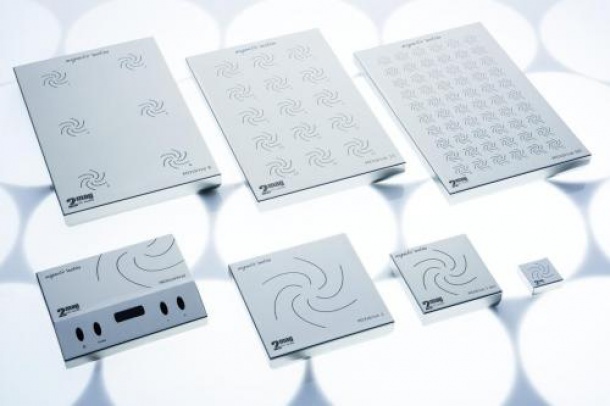

Multi-position magnetic stirrers MIXdrive with external control use in waterbath and oven
Without heating. With non-mechanical, electronic inductive drive and dust / water tight housing, 100 % wear-free and maintenance-free. Ideal for batch series stirring and for use in water baths. Choice of 6-place stirring position models which can stir up to 6 x 1 L erlenmeyer flasks, 15-place models for up to 15 x 250 ml beakers (high form) and 60-place models for small sample containers and using appropriate test tube stands, up to 60 test tubes or centrifuge tubes. Control units available as price-optimized eco 10 W, high-power 20 W or ultra high-power 40W version. Preselectable mixing power. SoftStart. 3 years warranty. Made in Germany.
Please order control unit separately.
Sprecifications
Operating conditions: -10 °C to +50 °C at 100 % R.H. max.
Operating temp. range
Standard:
HT-Version:
in air and water +50 °C
in air (ovens) +200 °C, in water +95 °C
Stirrer unit housing: Stainless steel
IP code: IP 68
Type MIXdrive 1
Stirring capacity 10 l
Min. speed 100 rpm
Max. speed 1200 rpm
Stirring positions 1
Width working area mm
Depth working area mm
Material stirring surface Stainless steel
Min. permitted ambient temperature -10 °C
Max. permitted ambient temperature 50 °C
Max. relative humidity rate 100 %
Colour housing Stainless steel
Anzeigeart digital
Protection class IP 68
Stirring centre distances mm
Dimensions (W x D x H) 180 x 180 x 38 mm
Width 180 mm
Depth 180 mm
Height 38 mm
Material Stainless steel
Plug type EU
Type of auxiliary energy 48 VDC
Motor rating input 20 W
Weight 3.200000 kg
Motor rating output W
Max. operating temperature 50 °C
Heating power W
Power consumption W
Without heating. With non-mechanical, electronic inductive drive and dust / water tight housing, 100 % wear-free and maintenance-free. Ideal for batch series stirring and for use in water baths. Choice of 6-place stirring position models which can stir up to 6 x 1 L erlenmeyer flasks, 15-place models for up to 15 x 250 ml beakers (high form) and 60-place models for small sample containers and using appropriate test tube stands, up to 60 test tubes or centrifuge tubes. Control units available as price-optimized eco 10 W, high-power 20 W or ultra high-power 40W version. Preselectable mixing power. SoftStart. 3 years warranty. Made in Germany.
Please order control unit separately.
Sprecifications
Operating conditions: -10 °C to +50 °C at 100 % R.H. max.
Operating temp. range
Standard:
HT-Version:
in air and water +50 °C
in air (ovens) +200 °C, in water +95 °C
Stirrer unit housing: Stainless steel
IP code: IP 68
Type MIXdrive 1
Stirring capacity 10 l
Min. speed 100 rpm
Max. speed 1200 rpm
Stirring positions 1
Width working area mm
Depth working area mm
Material stirring surface Stainless steel
Min. permitted ambient temperature -10 °C
Max. permitted ambient temperature 50 °C
Max. relative humidity rate 100 %
Colour housing Stainless steel
Anzeigeart digital
Protection class IP 68
Stirring centre distances mm
Dimensions (W x D x H) 180 x 180 x 38 mm
Width 180 mm
Depth 180 mm
Height 38 mm
Material Stainless steel
Plug type EU
Type of auxiliary energy 48 VDC
Motor rating input 20 W
Weight 3.200000 kg
Motor rating output W
Max. operating temperature 50 °C
Heating power W
Power consumption W
Varianty produktu
Pro zobrazení cen na míru se přihlašte do klientské sekce.
Kód produktu
Kód produktu
Kód BDL 9645968 Kód výrobce 40260
Kód BDL 9645965 Kód výrobce
40015
Magnetic stirirng system MIXdrive 15 external control -Please order control unit separately-
40015
Kód BDL 9645962 Kód výrobce
40301
Magnetic stirring system MIXdrive 1 eco HT (+200°C), external control -Please order control unit separately-
40301
Kód BDL 9645959 Kód výrobce
40001
Magnetic stirring system MIXdrive 1 external control -Please order control unit separately-
40001
Kód BDL 9645986 Kód výrobce
40303
Magnetic stirr system MIXdrive 1 XS HT (+200°C), external controll
40303
Kód BDL 9645967 Kód výrobce
40060
Magnetic stirring system MIXdrive 60 external control -Please order control unit separately-
40060
Kód BDL 9645964 Kód výrobce
40206
Magnetic stirring system MIXdrive 6 HT (+200°C), external control -Please order control unit separately-
40206
Kód BDL 9645961 Kód výrobce
40101
Magnetic stirring system MIXdrive 1 eco external control -Please order control unit separately-
40101
Kód BDL 9645985 Kód výrobce
40300
Magnetic stirr system MIXdrive 1 XS external controll
40300
Kód BDL 9645966 Kód výrobce
40215
Magnetic stirring system MIXdrive 15 HT (+200°C), external control -Please order control unit separately-
40215
Kód BDL 9645963 Kód výrobce
40006
Magnetic stirring system MIXdrive 6 external control -Please order control unit separately-
40006
Kód BDL 9645960 Kód výrobce
40201
Magnetic stirring system MIXdrive 1 HT (+200°C), external control -Please order control unit separately-
40201
