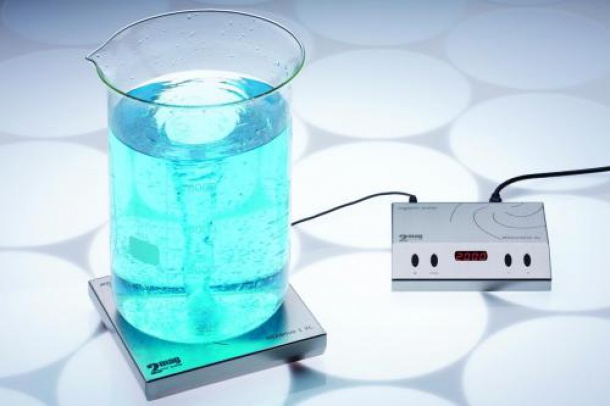

Magnetic stirrer MIXdrive 1 XL
Ultra flat, compact and strong magnetic stirrer with fully automatic stirring bar monitoring mixWATCH, up to 40 litres stirring volume, also suitable for highly viscous media, very strong magnetic coupling, therefore predestined for magnetic power transmission over wide distances or for thick vessel bottoms.
Maintenance-free 2mag-motor-drive with large speed range from 70 up to 2000 rpm, temperature resistant up to 100 °C, designed for use in ovens, extremely robust construction and performance, easy to clean and firm.

Control unit MIXcontrol XL
Powerful control unit for MIXdrive 1 XL, wide speed range 70 to 2000 rpm, jerk-free, even and smooth stirring even at slow speeds, incl. mixWATCH, stirring bar monitoring with fully automatic trim of the maximum reachable speed, for reliable and unattended operation, digital display, 4-step power setting, high power setting for viscous liquids and reduced power setting for long-term operation without warming effect, adjustable SoftStart for different volumes/viscosities, adjustable interval times for automated restart, QuickStop against after-run and glass breakage, RS232.
3 years warranty, Made in Germany.
Please order control unit separately.
Specifications
Ambient temperature: 5 ... 100 °C (at 95 % humidity)
Housing: stainless steel, hermetically sealed
IP code: IP 66

Type MIXdrive 1 XL
Stirring capacity 40 l
Min. speed 60 rpm
Max. speed 2000 rpm
Stirring positions 1
Width working area mm
Depth working area mm
Material stirring surface stainless steel
Min. permitted ambient temperature 5 °C
Max. permitted ambient temperature 100 °C
Max. relative humidity rate 95 %
Colour housing stainless steel
Anzeigeart -
Protection class IP66
Dimensions (W x D x H) 225 x 225 x 38 mm
Width 225 mm
Depth 225 mm
Height 225 mm
Stirring centre distances 38 mm
Material stainless steel
Plug type EU
Type of auxiliary energy 48 VDC
Motor rating input 20 W
Weight 3.400000 kg
Motor rating output 20 W
Power consumption 20 W
