vrtulové míchadlo, 3 čepele, PTFE
Propeller, 3 blades, PTFE, Ø agitator 75 mm, Ø agitator shaft 8 mm, To fit chuck diam. 6.50 mm, Length 600 mm, Blades angular
Zařazeno v kategoriích
Míchadla
Popis

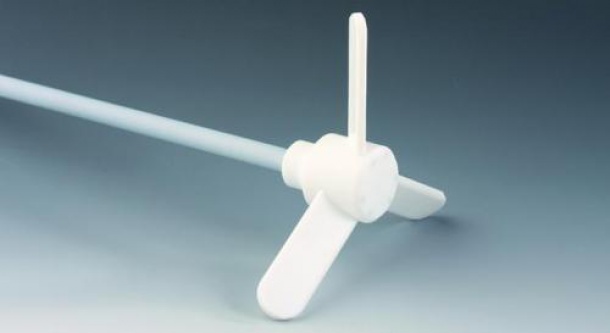

Propeller, 3 blades, PTFE
The stirrer shafts consist of a PTFE-jacketed, stainless steel shaft and a stirrer paddle made of solid PTFE. The stainless steel core assures stability of the stirrer shaft and allows safe attachment of the stirrer chuck. Thanks to the thick PTFE coat and the paddle made of solid PTFE, the medium will only come into contact with PTFE. High chemical resistance makes it almost universally suitable. PTFE is extremely nonstick so that residues are repelled from shaft and paddle. The stirrer shafts are similar in size to (KPG) glass stirring rods and are therefore interchangeable easily.
Operating temperature: -200°C to +250°C
Additional sizes and accessories are available on request.
Information on the mixing effects of the different stirring geometries can be found in the descriptions of the stainless steel stirring rotors.
The blades are inclined at 45 °. Recommended for medium to high speed operations.
Ø agitator 75 mm
Ø agitator shaft 8 mm
To fit chuck diam. 6.50 mm
Length 600 mm
Blades angular
The stirrer shafts consist of a PTFE-jacketed, stainless steel shaft and a stirrer paddle made of solid PTFE. The stainless steel core assures stability of the stirrer shaft and allows safe attachment of the stirrer chuck. Thanks to the thick PTFE coat and the paddle made of solid PTFE, the medium will only come into contact with PTFE. High chemical resistance makes it almost universally suitable. PTFE is extremely nonstick so that residues are repelled from shaft and paddle. The stirrer shafts are similar in size to (KPG) glass stirring rods and are therefore interchangeable easily.
Operating temperature: -200°C to +250°C
Additional sizes and accessories are available on request.
Information on the mixing effects of the different stirring geometries can be found in the descriptions of the stainless steel stirring rotors.
The blades are inclined at 45 °. Recommended for medium to high speed operations.
Ø agitator 75 mm
Ø agitator shaft 8 mm
To fit chuck diam. 6.50 mm
Length 600 mm
Blades angular
Varianty produktu
Pro zobrazení cen na míru se přihlašte do klientské sekce.
Kód produktu
Kód produktu
Kód BDL 9197195 Kód výrobce C 392-40
Kód BDL 9197140 Kód výrobce
C 378-18
Ø agitator 75 mm, Ø agitator shaft 10 mm, To fit chuck diam. 8 mm, Length 450 mm, Blades angular
C 378-18
Kód BDL 9197130 Kód výrobce
C 378-12
Ø agitator 75 mm, Ø agitator shaft 8 mm, To fit chuck diam. 6.50 mm, Length 350 mm, Blades angular
C 378-12
Kód BDL 6307564 Kód výrobce
C 378-04
Ø agitator 50 mm, Ø agitator shaft 6 mm, To fit chuck diam. 4 mm, Length 250 mm, Blades round
C 378-04
Kód BDL 6253926 Kód výrobce
C 392-70
Ø agitator 200 mm, Ø agitator shaft 16 mm, To fit chuck diam. 14 mm, Length 1200 mm, Blades round
C 392-70
Kód BDL 6237642 Kód výrobce
C 378-06
Ø agitator 50 mm, Ø agitator shaft 6 mm, To fit chuck diam. 4 mm, Length 350 mm, Blades round
C 378-06
Kód BDL 9197194 Kód výrobce
C 392-34
Ø agitator 140 mm, Ø agitator shaft 10 mm, To fit chuck diam. 8 mm, Length 600 mm, Blades round
C 392-34
Kód BDL 9197139 Kód výrobce
C 378-14
Ø agitator 75 mm, Ø agitator shaft 8 mm, To fit chuck diam. 6.50 mm, Length 450 mm, Blades angular
C 378-14
Kód BDL 9197129 Kód výrobce
C 378-20
Ø agitator 75 mm, Ø agitator shaft 10 mm, To fit chuck diam. 8 mm, Length 600 mm, Blades angular
C 378-20
Kód BDL 6284332 Kód výrobce
C 378-17
Ø agitator 50 mm, Ø agitator shaft 10 mm, To fit chuck diam. 8 mm, Length 450 mm, Blades angular
C 378-17
Kód BDL 6253444 Kód výrobce
C 392-28
Ø agitator 140 mm, Ø agitator shaft 10 mm, To fit chuck diam. 8 mm, Length 450 mm, Blades round
C 392-28
Kód BDL 6227769 Kód výrobce
C 392-58
Ø agitator 200 mm, Ø agitator shaft 16 mm, To fit chuck diam. 14 mm, Length 800 mm, Blades round
C 392-58
Kód BDL 9197196 Kód výrobce
C 392-64
Ø agitator 200 mm, Ø agitator shaft 16 mm, To fit chuck diam. 14 mm, Length 1000 mm, Blades round
C 392-64
Kód BDL 9197149 Kód výrobce
C 378-22
Ø agitator 75 mm, Ø agitator shaft 10 mm, To fit chuck diam. 8 mm, Length 800 mm, Blades angular
C 378-22
Kód BDL 9197138 Kód výrobce
C 378-08
Ø agitator 50 mm, Ø agitator shaft 6 mm, To fit chuck diam. 4 mm, Length 450 mm, Blades round
C 378-08
Kód BDL 7638652 Kód výrobce
C 392-42
Ø agitator 140 mm, Ø agitator shaft 10 mm, To fit chuck diam. 8 mm, Length 1200 mm, Blades round
C 392-42
Kód BDL 6283142 Kód výrobce
C 392-74
Ø agitator 200 mm, Ø agitator shaft 16 mm, To fit chuck diam. 14 mm, Length 1600 mm, Blades round
C 392-74
Kód BDL 6244067 Kód výrobce
C 392-46
Ø agitator 14 mm, Ø agitator shaft 16 mm, To fit chuck diam. 14 mm, Length 1000 mm, Blades round
C 392-46
Kód BDL 6071711 Kód výrobce
C 378-16
Ø agitator 75 mm, Ø agitator shaft 8 mm, To fit chuck diam. 6.50 mm, Length 600 mm, Blades angular
C 378-16
