Průmyslové míchačky stlačeného vzduchu BSR 64 se stojanem
Compressed air industrial stirrers BSR 64 with floor stand, Type BSR64/160-V , Capacity max. 200 litres, Off-load speed 2600 rpm., Load speed 1300 rpm., Load torque 4.7 Nm, For fluid viscosity 20000 mPa., Rating 640 W
Popis

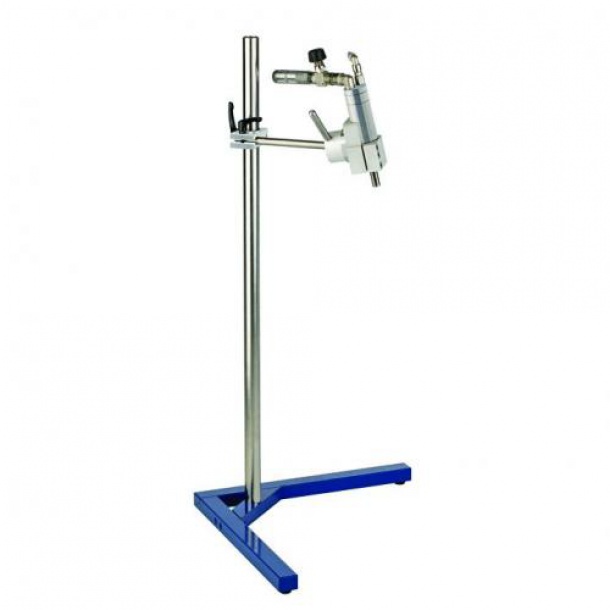

Compressed air industrial stirrers BSR 64 with floor stand
BSR series stirrers perform routine mixing tasks up to 200 l, mounted on a floor stand.
General specifications:
-operating pressure max. 6 bar
-air consumption 800 l/min. at 6 bar
-power output 640 W at 6 bar
-clockwise rotation
-ATEX rating to EX II 2G c T5
Basic models include:
-all-stainless steel housing
-continuously adjustable speed control valve
-spherical clamping device with support arm diam. 16 mm, length 200 mm
-floor stand with rod (height 1000 mm, width 600 mm) and bosshead
-clip connector
-silencer
-output shaft L 32 mm x diam. 14 mm
Type BSR64/160-V
Capacity max. 200 litres
Off-load speed 2600 rpm.
Load speed 1300 rpm.
Load torque 4.7 Nm
For fluid viscosity 20000 mPa.
Rating 640 W
BSR series stirrers perform routine mixing tasks up to 200 l, mounted on a floor stand.
General specifications:
-operating pressure max. 6 bar
-air consumption 800 l/min. at 6 bar
-power output 640 W at 6 bar
-clockwise rotation
-ATEX rating to EX II 2G c T5
Basic models include:
-all-stainless steel housing
-continuously adjustable speed control valve
-spherical clamping device with support arm diam. 16 mm, length 200 mm
-floor stand with rod (height 1000 mm, width 600 mm) and bosshead
-clip connector
-silencer
-output shaft L 32 mm x diam. 14 mm
Type BSR64/160-V
Capacity max. 200 litres
Off-load speed 2600 rpm.
Load speed 1300 rpm.
Load torque 4.7 Nm
For fluid viscosity 20000 mPa.
Rating 640 W
Varianty produktu
Pro zobrazení cen na míru se přihlašte do klientské sekce.
Kód produktu
Kód produktu
Kód BDL 9779164 Kód výrobce 40 26446 00495 8
Kód BDL 9779163 Kód výrobce
40 26446 00494 1
Type BSR64/160-V , Capacity max. 200 litres, Off-load speed 2600 rpm., Load speed 1300 rpm., Load torque 4.7 Nm, For fluid viscosity 20000 mPa., Rating 640 W
40 26446 00494 1
Kód BDL 9779165 Kód výrobce
40 26446 00496 5
Type BSR64/30-V , Capacity max. 200 litres, Off-load speed 580 rpm., Load speed 290 rpm., Load torque 21 Nm, For fluid viscosity 100000 mPa., Rating 640 W
40 26446 00496 5
