míchadlo kotva, PTFE
Anchor stirrer, PTFE, Ø agitator 60 mm, Ø agitator shaft 8 mm, To fit chuck diam. 6.50 mm, Length 450 mm
Zařazeno v kategoriích
Míchadla
Popis

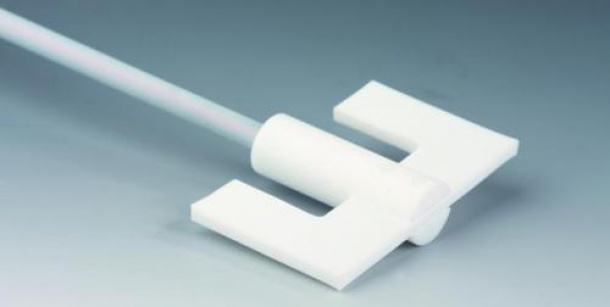

Anchor stirrer, PTFE
The stirrer shafts consist of a PTFE-jacketed, stainless steel shaft and a stirrer paddle made of solid PTFE. The stainless steel core assures stability of the stirrer shaft and allows safe attachment of the stirrer chuck. Thanks to the thick PTFE coat and the paddle made of solid PTFE, the medium will only come into contact with PTFE. High chemical resistance makes it almost universally suitable. PTFE is extremely nonstick so that residues are repelled from shaft and paddle. The stirrer shafts are similar in size to (KPG) glass stirring rods and are therefore interchangeable easily.
Operating temperature: -200°C to +250°C
Additional sizes and accessories are available on request.
Information on the mixing effects of the different stirring geometries can be found in the descriptions of the stainless steel stirring rotors.
Recommended for low speed operations.
Ø agitator 60 mm
Ø agitator shaft 8 mm
To fit chuck diam. 6.50 mm
Length 450 mm
The stirrer shafts consist of a PTFE-jacketed, stainless steel shaft and a stirrer paddle made of solid PTFE. The stainless steel core assures stability of the stirrer shaft and allows safe attachment of the stirrer chuck. Thanks to the thick PTFE coat and the paddle made of solid PTFE, the medium will only come into contact with PTFE. High chemical resistance makes it almost universally suitable. PTFE is extremely nonstick so that residues are repelled from shaft and paddle. The stirrer shafts are similar in size to (KPG) glass stirring rods and are therefore interchangeable easily.
Operating temperature: -200°C to +250°C
Additional sizes and accessories are available on request.
Information on the mixing effects of the different stirring geometries can be found in the descriptions of the stainless steel stirring rotors.
Recommended for low speed operations.
Ø agitator 60 mm
Ø agitator shaft 8 mm
To fit chuck diam. 6.50 mm
Length 450 mm
Varianty produktu
Pro zobrazení cen na míru se přihlašte do klientské sekce.
Kód produktu
Kód produktu
Kód BDL 9197146 Kód výrobce C 384-16
Kód BDL 7982146 Kód výrobce
C 384-19
Ø agitator 130 mm, Ø agitator shaft 10 mm, To fit chuck diam. 8 mm, Length 450 mm
C 384-19
Kód BDL 7645815 Kód výrobce
C 384-11
Ø agitator 60 mm, Ø agitator shaft 8 mm, To fit chuck diam. 6.50 mm, Length 800 mm
C 384-11
Kód BDL 6286974 Kód výrobce
C 384-07
Ø agitator 100 mm, Ø agitator shaft 10 mm, To fit chuck diam. 8 mm, Length 450 mm
C 384-07
Kód BDL 6241696 Kód výrobce
C 384-01
Ø agitator 40 mm, Ø agitator shaft 8 mm, To fit chuck diam. 6.50 mm, Length 350 mm
C 384-01
Kód BDL 6076375 Kód výrobce
C 384-06
Ø agitator 80 mm, Ø agitator shaft 8 mm, To fit chuck diam. 6.50 mm, Length 450 mm
C 384-06
Kód BDL 9197148 Kód výrobce
C 384-64
Ø agitator 150 mm, Ø agitator shaft 16 mm, To fit chuck diam. 14 mm, Length 1200 mm
C 384-64
Kód BDL 9197145 Kód výrobce
C 384-10
Ø agitator 100 mm, Ø agitator shaft 8 mm, To fit chuck diam. 6.50 mm, Length 600 mm
C 384-10
Kód BDL 7900374 Kód výrobce
C 384-44
Ø agitator 130 mm, Ø agitator shaft 10 mm, To fit chuck diam. 8 mm, Length 600 mm
C 384-44
Kód BDL 6900662 Kód výrobce
C 384-17
Ø agitator 80 mm, Ø agitator shaft 10 mm, To fit chuck diam. 8 mm, Length 450 mm
C 384-17
Kód BDL 6264222 Kód výrobce
C 384-52
Ø agitator 150 mm, Ø agitator shaft 16 mm, To fit chuck diam. 14 mm, Length 800 mm
C 384-52
Kód BDL 6210121 Kód výrobce
C 384-58
Ø agitator 150 mm, Ø agitator shaft 16 mm, To fit chuck diam. 14 mm, Length 1000 mm
C 384-58
Kód BDL 6076374 Kód výrobce
C 384-04
Ø agitator 60 mm, Ø agitator shaft 8 mm, To fit chuck diam. 6.50 mm, Length 450 mm
C 384-04
Kód BDL 9197147 Kód výrobce
C 384-24
Ø agitator 100 mm, Ø agitator shaft 10 mm, To fit chuck diam. 8 mm, Length 600 mm
C 384-24
Kód BDL 9197144 Kód výrobce
C 384-02
Ø agitator 60 mm, Ø agitator shaft 8 mm, To fit chuck diam. 6.50 mm, Length 350 mm
C 384-02
Kód BDL 7659979 Kód výrobce
C 384-48
Ø agitator 130 mm, Ø agitator shaft 10 mm, To fit chuck diam. 8 mm, Length 800 mm
C 384-48
Kód BDL 6800338 Kód výrobce
C 384-08
Ø agitator 80 mm, Ø agitator shaft 8 mm, To fit chuck diam. 6.50 mm, Length 600 mm
C 384-08
Kód BDL 6248044 Kód výrobce
C 384-32
Ø agitator 100 mm, Ø agitator shaft 10 mm, To fit chuck diam. 8 mm, Length 1000 mm
C 384-32
Kód BDL 6210120 Kód výrobce
C 384-28
Ø agitator 100 mm, Ø agitator shaft 10 mm, To fit chuck diam. 8 mm, Length 800 mm
C 384-28
