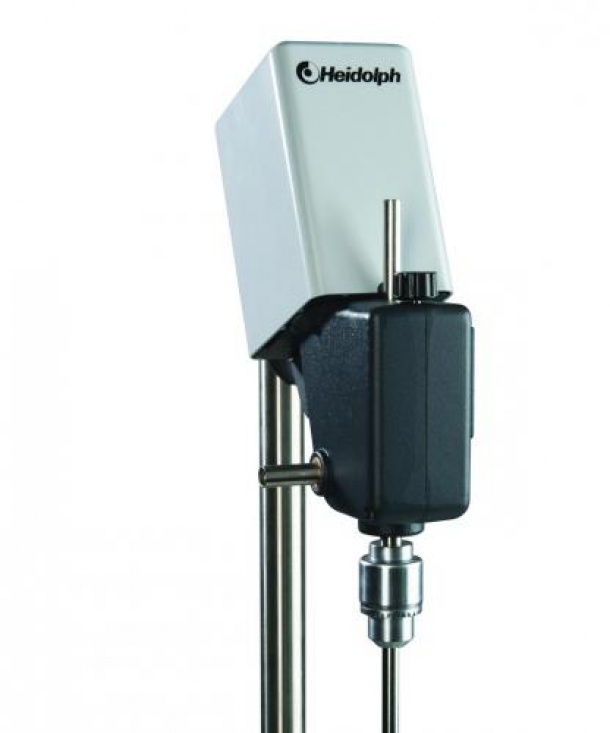

Mechanical Stirrers RZR 1
These models are ideal for standard stirring tasks. They are designed to mix and disperse media that require no-reproducible results of high-viscosity applications under high speeds.
-A 2-gear stage design guarantees the highest power over the entire speed range
-The speed is adjustable over a scale from 35 to 2200 rpm
-Slim design fits nicely into your research environment
-A through-shaft design allows for adjusting the impeller position to make height adjustment more convenient
-An optimal shaft guard prevents any accidents involving contact with the impeller shaft running at high speeds
Specifications
Stirring quantity max. (H2O): 20 l
Speed range: 35 ... 250 rpm
280 ... 2200 rpm
Max. viscosity: 40000 mPas
Motor rating input/output: 77/18 W
Max. torque at stirring shaft: 100 Ncm
Display: Scale
Chuck range: 8 mm
Dimensions (W x D x H): 71 x 172 x 250 mm
Weight: 2.7 kg
Power supply: 230 V, 50/60 Hz
Protection class: IP 20

Type RZR 1
Power 18 W
Speed range I: 35 - 250, II: 280 - 2200 rpm.
Max. torque 100 Ncm
Speed control dial
