pH electrodes TopLine 80 / 81 / 83
pH electrodes TopLine 80 / 81 / 83, Type TopLine 80-120 pH , Temperature sensor - , Connector Koax plug head
Výrobce
Zařazeno v kategoriích
Vodivostní sondy
Popis

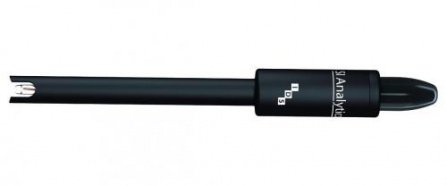

pH electrodes TopLine 80 / 81 / 83
pH combination electrode with PEEK shaft and labyrinth reference element (LoopRef). With 1 m fixed cable. TopLine 80-120 pH with coaxial plug-in head (cable combination LB 1A or LB 1BNC please order separately).
Specifications
Temperature range: 0 to 100 °C
pH range: 0 to 14 pH
Zero point: pH=7,0 ±0,3
Length / diam.: 120 mm / 12 mm
Electrolyte: KCl solid electrolyte (DuraLid)
Diaphragm: Fiber packing hole
Membrane shape: Cylindical
Membrane resistance at 25 °C: 550 MW
Type TopLine 80-120 pH
Temperature sensor -
Connector Koax plug head
pH combination electrode with PEEK shaft and labyrinth reference element (LoopRef). With 1 m fixed cable. TopLine 80-120 pH with coaxial plug-in head (cable combination LB 1A or LB 1BNC please order separately).
Specifications
Temperature range: 0 to 100 °C
pH range: 0 to 14 pH
Zero point: pH=7,0 ±0,3
Length / diam.: 120 mm / 12 mm
Electrolyte: KCl solid electrolyte (DuraLid)
Diaphragm: Fiber packing hole
Membrane shape: Cylindical
Membrane resistance at 25 °C: 550 MW
Type TopLine 80-120 pH
Temperature sensor -
Connector Koax plug head
Varianty produktu
Pro zobrazení cen na míru se přihlašte do klientské sekce.
Kód produktu
Kód produktu
Kód BDL 6272196 Kód výrobce 285111200
Kód BDL 6272195 Kód výrobce
285111195
Type TopLine 81-120 pHT VP , Temperature sensor Pt 1000 , Connector VP plug head
285111195
Kód BDL 6272194 Kód výrobce
285111190
Type TopLine 80-120 pH , Temperature sensor - , Connector Koax plug head
285111190
