záznamník vlhkosti EBI 20-TH1

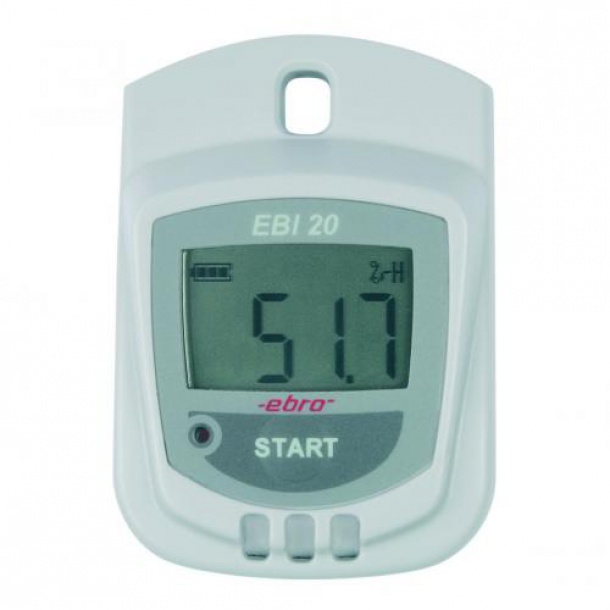

Temperature humidity logger EBI-20 TH1 with internal sensor
Výrobce
Zařazeno v kategoriích
Záznamníky teploty a vlhkosti
Popis
Humidity Logger EBI 20-TH1
Applications:
-reliable temperature and temperature/humidity recording
-transport
-storage monitoring
-refrigeration areas and coldrooms
Features:
-excellent price/performance ratio
-visual Alarm
-max / min values on display
-stores 40,000 readings, can be read off at any time
-replaceable battery
Specifications
Measuring range temperature:
Measuring range humidity: -30 to +70°C
0% to 100% R.H.
Accuracy, temperature: ±0.5°C (-20 to +40°C); ±0.8°C for remaining measuring range
Accuracy, humidity: ±3% R.H. (10 to 90% R.H.)
Resolution temperature:
Resolution humidity: 0.1°C
0.1% R.H.
Memory: 40.000 samples
Sensor: NTC for temperature / capacitive for humidity
Measuring period: 1 minute to 24 hours
Measuring mode: immediate loop measurement, measurement from starting point, start immediately until memory full, start/stop measuring, start when button pressed
Battery: 3V lithium (CR 2450), can be replaced by user
IP code: IP 52
Housing : ABS
Dimensions: 69mm x 48mm x 22mm
Type EBI 20-TH1
Range start temperature -30 °C
Measuring range temperature 70 °C
Accuracy temperature 0.80 ± °C
Range start humidity % r.F.
Measuring range end humidity 100 % r.F.
Accuracy humidity 3 ± % r.F.
Storage readings 40000
Width 48 mm
Depth 69 mm
Height 22 mm
Resolution temperature 0.10 °C
Resolution humidity 0.10 % r.F.
Sensor type NTC, capacitive humidity sensor
Net weight 0.040000 kg
Protection class IP52
Type of auxiliary energy 3 V Lithium
Description Temperature Humidity Logger
Applications:
-reliable temperature and temperature/humidity recording
-transport
-storage monitoring
-refrigeration areas and coldrooms
Features:
-excellent price/performance ratio
-visual Alarm
-max / min values on display
-stores 40,000 readings, can be read off at any time
-replaceable battery
Specifications
Measuring range temperature:
Measuring range humidity: -30 to +70°C
0% to 100% R.H.
Accuracy, temperature: ±0.5°C (-20 to +40°C); ±0.8°C for remaining measuring range
Accuracy, humidity: ±3% R.H. (10 to 90% R.H.)
Resolution temperature:
Resolution humidity: 0.1°C
0.1% R.H.
Memory: 40.000 samples
Sensor: NTC for temperature / capacitive for humidity
Measuring period: 1 minute to 24 hours
Measuring mode: immediate loop measurement, measurement from starting point, start immediately until memory full, start/stop measuring, start when button pressed
Battery: 3V lithium (CR 2450), can be replaced by user
IP code: IP 52
Housing : ABS
Dimensions: 69mm x 48mm x 22mm
Type EBI 20-TH1
Range start temperature -30 °C
Measuring range temperature 70 °C
Accuracy temperature 0.80 ± °C
Range start humidity % r.F.
Measuring range end humidity 100 % r.F.
Accuracy humidity 3 ± % r.F.
Storage readings 40000
Width 48 mm
Depth 69 mm
Height 22 mm
Resolution temperature 0.10 °C
Resolution humidity 0.10 % r.F.
Sensor type NTC, capacitive humidity sensor
Net weight 0.040000 kg
Protection class IP52
Type of auxiliary energy 3 V Lithium
Description Temperature Humidity Logger
Varianty produktu
Pro zobrazení cen na míru se přihlašte do klientské sekce.
Kód produktu
Kód produktu
Kód BDL 9908074 Kód výrobce 1601-0048
Kód BDL 6242239.001
Truck wall holder EBI-20-WM1
Kód BDL 9908072.001
Interface EBI-20 IF incl. analyse software Winlog.basic
Kód BDL 9908079.001
Wall holder EBI-20 WM
Kód BDL 9908070 Kód výrobce
1601-0044
Temperature humidity logger EBI-20 TH1 with internal sensor
1601-0044
