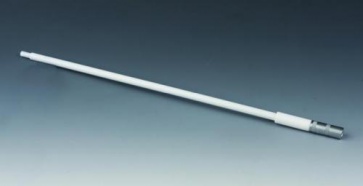

Temperature Probe Lemo-Compact Pt100
Temperature probe with integral Lemo-connector. Particularly useful for measuring temperature in aggressive media (temperature range: -200 °C to +250 °C). The temperature element is located in a stainless steel core which is entirely sealed in a solid and seamless PTFE coating. This provides high chemical resistance and rigidity, however, the probe can be bent manually to the
desired shape. The tip of the probe is narrower (6mm dia.) for faster measurement response.
Connector: 1 x Lemo, size 1, connector with 4 cores. The connector is situated directly at the end of the probe so that it can be used for further applications without removing any cables.

Diam. 8 mm
Length 170 mm
Effective length 100 mm
