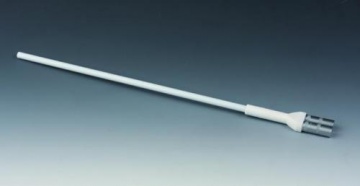

Double Temperature Probe PT 100 Lemo Compact
Temperature probe with two independent temperature elements and two Lemo-connectors.
Particularly useful for parallel evaluation of values measured in aggressive media (temperature range: -200°C to +250°C). The temperature elements are located in a stainless steel core which is
entirely sealed in a solid and seamless PTFE coating. This provides high chemical resistance and rigity, however, the probe can be bent manually to the desired shape. The tip of the probe is smaller (6mm dia.) for faster measurement response. 2 x Lemo size 1 connectors, with 4 cores. Both connectors are situated directly at the end of the probe. It can easily be used for further applications without removing any cables.

Diam. 8 mm
Length 400 mm
Effective length 300 mm
