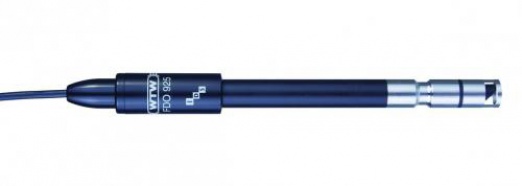

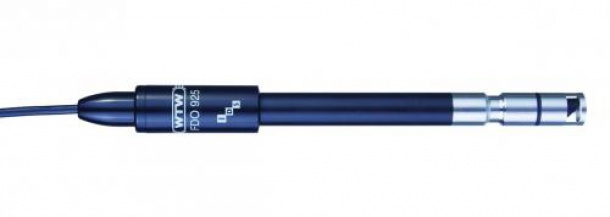

Optical D.O. Sensor FDO® 925
Optical IDS D.O. sensor for portable MultiLine® IDS and InoLab® Multi IDS benchtop meters. Measures the dissolved oxygen according DIN ISO 17289:2014-12. For applications in the lab and in process, outdoor and waste water treatment plants. Low maintenance (t99 < 60 s). No oxygen consumption, with inclined membrane for avoiding air bubbles. Factory calibrated membrane with smart chip. Built-in NTC 30 kOhm temperature sensor.
Specifications
Temperature range: 0 ... 50.0 °C ± 0.2 °C
DO concentration: 0.00 ... 20.00 mg/l ± 0.5 % of value
DO saturation: 0.0 ... 200.0 % ± 0.5 % of value
Partial pressure: 0.0 ... 400 hPa ± 0.5 % of value
Shaft length / diam.: 150 mm / 15.3 mm

Type FDO® 925
Description 1.5 m fix cable
