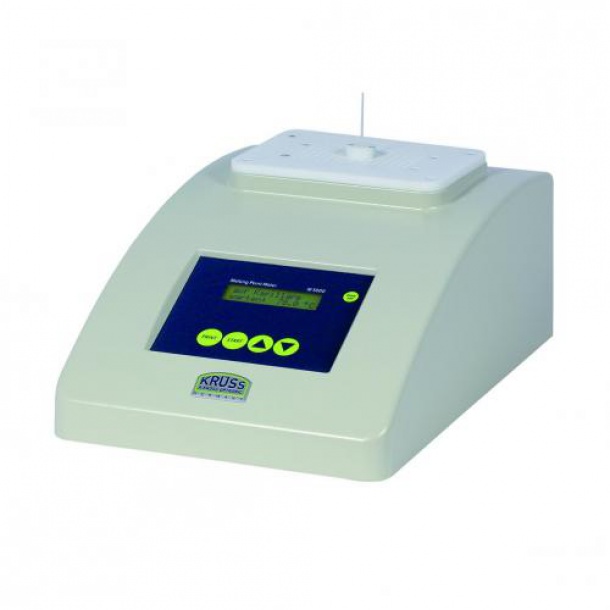

Melting Point Meter M5000
For powdery substances with a melting point up to 400 °C. A fan cooling allows fast measurements in every range of temperature. The display provides a clearly-arranged readout of all important measuring data.

-Fully automatic measurement by means of transmission optics
-1 capillary intake
-LCD display
-Alarm signal when reaching the melting point
-Fast cooling through integrated fan
-Digital display of all important data
-Display in German or English
-With RS-232 interface for printer CBM910
-Easy-to-clean membrane keypad

Scope of supply: Melting Point Meter, protective cover, 100 capillaries
Specifications
Temperature range: 25 ... 400 °C
Resolution: 0.1 °C
Accuracy: ± 0.3 °C (25 ... 200 °C)
± 0.5 °C (200 ... 400 °C)
Preheating rate: up to 300 °C approx. 4.0 min
up to 400 °C approx. 7.5 min
Heating rate: 1 °C min-1
Capillary-Ø: 1.4 mm
Capillary intake: 1
Dimensions (W x D x H): 220 x 340 x 150 mm
Weight: 4.1 kg
Power supply: 90 ... 264 V
IP code: IP20

Type M5000
