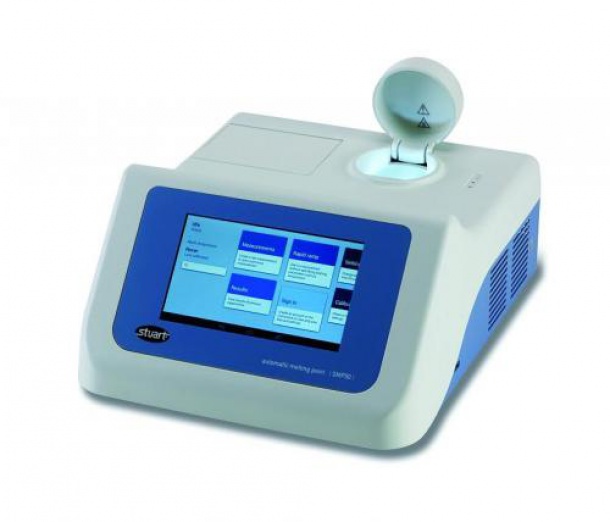

Automatic Melting Point Apparatus, SMP50
Accurately and reliably determining the melting point of up to three samples simultaneously.
The SMP50 has a custom designed user interface based on an established Android platform for intuitive setup and navigation. All operation is via the 7'' colour touchscreen. Once programmed, users can leave the SMP50 to complete the melt analysis independently, alternatively the melt can also be observed on the screen live or post melt. During post melt review additional measurement tags can be added if required, such as meniscus point or the automatically obtained result can be overwritten.
A generous 8 GB on board storage is included, which should comfortably hold approximately 300 melts files including videos. Results can also be transferred via USB stick on to PC or can be printed directly from the unit via the accessory printer.
The SMP50 features a useful storage drawer to house all standard capillary tubes.

All units are factory supplied with a calibration certificate showing individual serial number for traceability. The SMP50 also conforms to Pharmacopeia and GLP.
Specifications
No of samples: 3 simultaneously
Temperature range: Ambient to 400 °C
Temperature resolution: 0.1 °C
Display: 7'' HD Colour
Ramp rates: 0.1 to 20 °C in 0.1 °C increments
Temperature sensor: PT1000 Platinum resistance
Memory: 8 GB (approx. 300 results with video)
Cool down time: 350 to 50 °C (approx. 12 min)
Heat up time: 50 to 350 °C (approx. 6 min)
Data transfer: USB Flash drive
Sample level: 2 to 3 mm in 50 mm or 100 mm length capillaries
Weight: 4.6 kg
Power supply: 120-230 V, 50/60 Hz

Type SMP50
